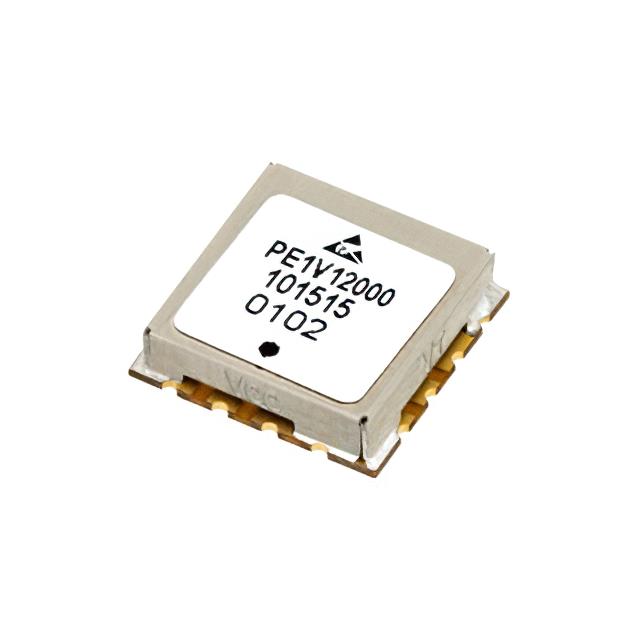

PE1V12000 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V12000
Product Number:
PE1V12000
MFR Standard Lead Time:
Package/Case:
16-SMD, No Lead
Detailed Description:
Surface Mount (SMT) Voltage Cont
Datasheet:
Descnt:
152.5MHz Center Frequency 0 V ~ 15 V Voltage Controlled Oscillator 6.5 -1.5, +1 dBm -25 2nd Harmonic Typ (dBc)
In Stock
16
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
130 ~ 175MHz
Frequency - Center
152.5MHz
Voltage - Supply
5V
Tuning Voltage (VDC)
0 V ~ 15 V
2nd Harmonic, Typ (dBc)
-25
Icc Max
22mA
Pushing (MHz/V)
0.1
Power (dBm)
6.5 -1.5, +1
Phase Noise Typ (dBc/Hz)
-125
Operating Temperature
-40°C ~ 85°C
Package / Case
16-SMD, No Lead
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height
0.162" (4.11mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V12000
Standard Package
1
