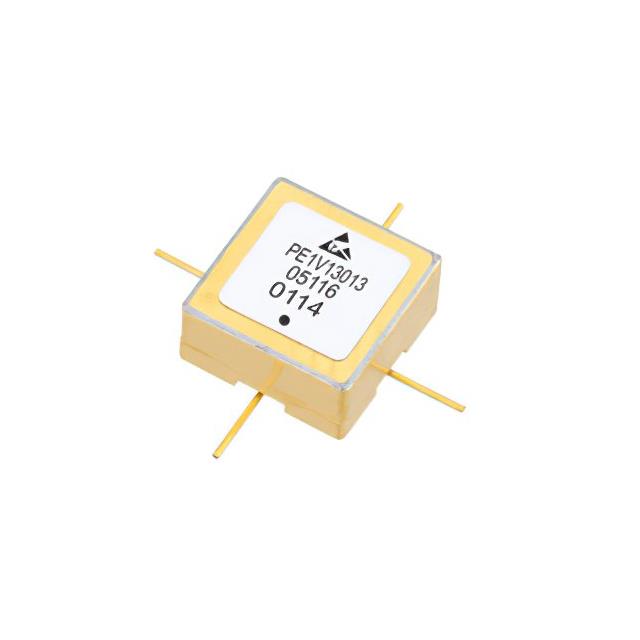

PE1V13013 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V13013
Product Number:
PE1V13013
MFR Standard Lead Time:
Package/Case:
4-SMD, Flat Leads
Detailed Description:
Surface Mount (SMT) Voltage Cont
Datasheet:
Descnt:
1.5GHz Center Frequency 0 V ~ 20 V Voltage Controlled Oscillator 11 -1.5, +2.5 dBm -12 2nd Harmonic Typ (dBc)
In Stock
5
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
1.2 ~ 1.8GHz
Frequency - Center
1.5GHz
Voltage - Supply
15V
Tuning Voltage (VDC)
0 V ~ 20 V
2nd Harmonic, Typ (dBc)
-12
Icc Max
23mA
Pushing (MHz/V)
0.5
Power (dBm)
11 -1.5, +2.5
Phase Noise Typ (dBc/Hz)
-89
Operating Temperature
-40°C ~ 85°C
Package / Case
4-SMD, Flat Leads
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height
0.252" (6.40mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V13013
Standard Package
1
