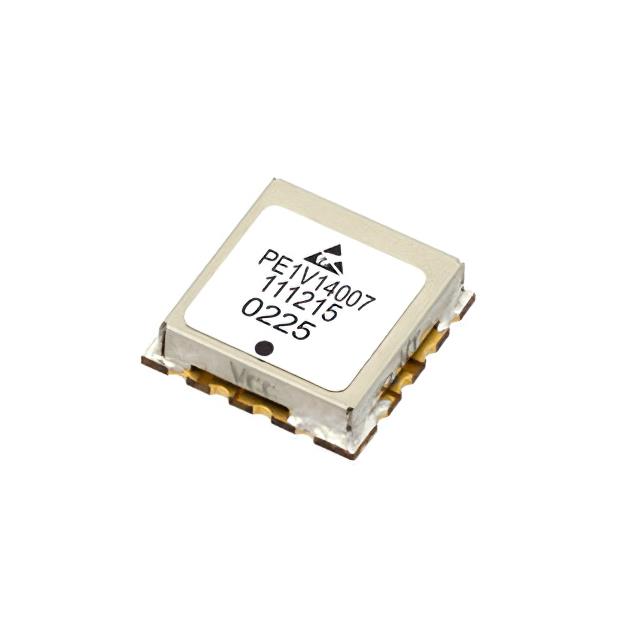

PE1V14007 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V14007
Product Number:
PE1V14007
MFR Standard Lead Time:
Package/Case:
16-SMD, No Lead
Detailed Description:
Surface Mount (SMT) Voltage Cont
Datasheet:
Descnt:
2.2GHz Center Frequency 0 V ~ 4.5 V Voltage Controlled Oscillator 4.5 ±1.5 dBm -35 2nd Harmonic Typ (dBc)
In Stock
12
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
2.1 ~ 2.3GHz
Frequency - Center
2.2GHz
Voltage - Supply
5V
Tuning Voltage (VDC)
0 V ~ 4.5 V
2nd Harmonic, Typ (dBc)
-35
Icc Max
18mA
Pushing (MHz/V)
2.5
Power (dBm)
4.5 ±1.5
Phase Noise Typ (dBc/Hz)
-101
Operating Temperature
-40°C ~ 85°C
Package / Case
16-SMD, No Lead
Size / Dimension
0.500" L x 0.500" W (12.70mm x 12.70mm)
Height
0.126" (3.20mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V14007
Standard Package
1
