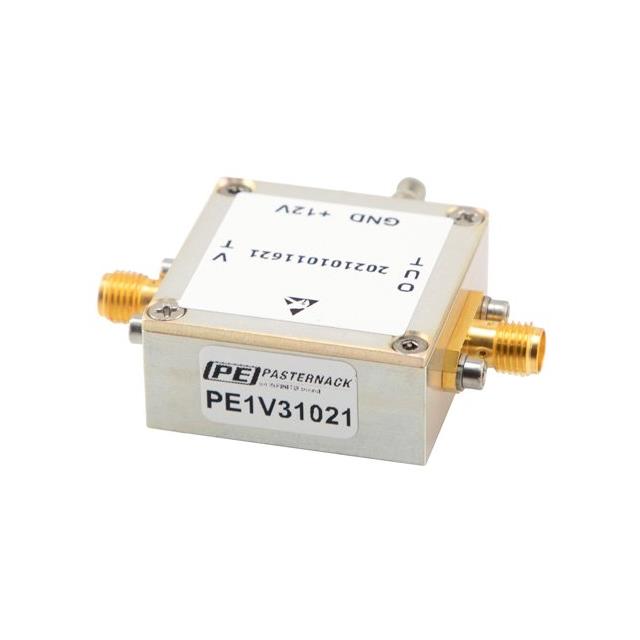

PE1V31021 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V31021
Product Number:
PE1V31021
MFR Standard Lead Time:
Package/Case:
Module, SMA Connectors
Detailed Description:
Voltage Controlled Oscillator, 1
Datasheet:
Descnt:
1.5425GHz Center Frequency 0.5 V ~ 5 V Voltage Controlled Oscillator 7 ±2 dBm -7 2nd Harmonic Typ (dBc)
In Stock
2
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
1.435 ~ 1.65GHz
Frequency - Center
1.5425GHz
Voltage - Supply
12V
Tuning Voltage (VDC)
0.5 V ~ 5 V
2nd Harmonic, Typ (dBc)
-7
Icc Max
15mA (Typ)
Pushing (MHz/V)
80
Power (dBm)
7 ±2
Phase Noise Typ (dBc/Hz)
-90
Operating Temperature
-40°C ~ 70°C
Package / Case
Module, SMA Connectors
Size / Dimension
1.250" L x 1.250" W (31.75mm x 31.75mm)
Height
0.568" (14.43mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V31021
Standard Package
1
