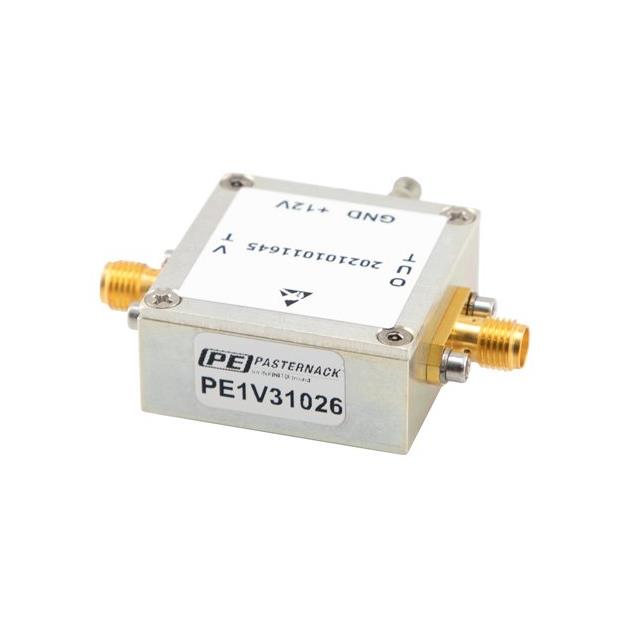

PE1V31026 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V31026
Product Number:
PE1V31026
MFR Standard Lead Time:
Package/Case:
Module, SMA Connectors
Detailed Description:
Voltage Controlled Oscillator, 2
Datasheet:
Descnt:
2.6GHz Center Frequency 1 V ~ 11 V Voltage Controlled Oscillator 9 -3, +4 dBm -10 2nd Harmonic Typ (dBc)
In Stock
2
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
2.4 ~ 2.8GHz
Frequency - Center
2.6GHz
Voltage - Supply
12V
Tuning Voltage (VDC)
1 V ~ 11 V
2nd Harmonic, Typ (dBc)
-10
Icc Max
25mA (Typ)
Pushing (MHz/V)
80
Power (dBm)
9 -3, +4
Phase Noise Typ (dBc/Hz)
-92
Operating Temperature
-40°C ~ 85°C
Package / Case
Module, SMA Connectors
Size / Dimension
1.250" L x 1.250" W (31.75mm x 31.75mm)
Height
0.568" (14.43mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V31026
Standard Package
1
