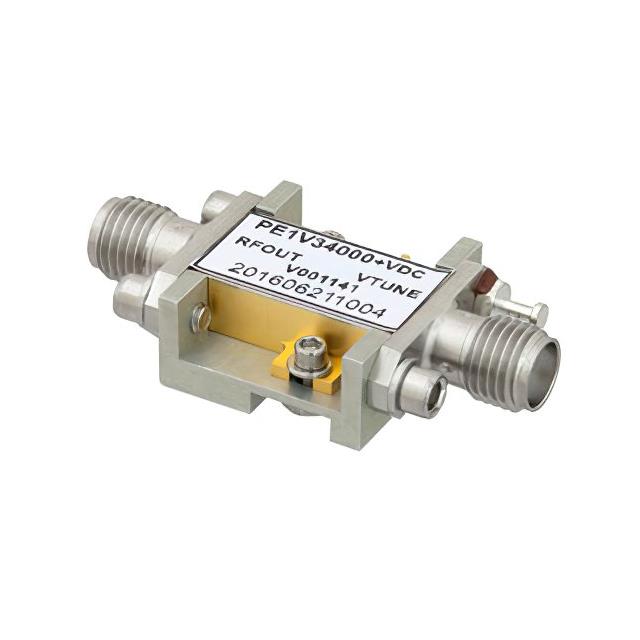

PE1V34000 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V34000
Product Number:
PE1V34000
MFR Standard Lead Time:
Package/Case:
Module, SMA Connectors
Detailed Description:
Voltage Controlled Oscillator (V
Datasheet:
Descnt:
6GHz Center Frequency 0 V ~ 18 V Voltage Controlled Oscillator 20 -3 dBm -10 2nd Harmonic Typ (dBc)
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
4 ~ 8GHz
Frequency - Center
6GHz
Voltage - Supply
12V
Tuning Voltage (VDC)
0 V ~ 18 V
2nd Harmonic, Typ (dBc)
-10
Icc Max
195mA (Typ)
Pushing (MHz/V)
0.2
Power (dBm)
20 -3
Phase Noise Typ (dBc/Hz)
-75
Operating Temperature
-40°C ~ 85°C
Package / Case
Module, SMA Connectors
Size / Dimension
1.390" L x 0.700" W (35.31mm x 17.78mm)
Height
0.291" (7.38mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V34000
Standard Package
1
