Compare

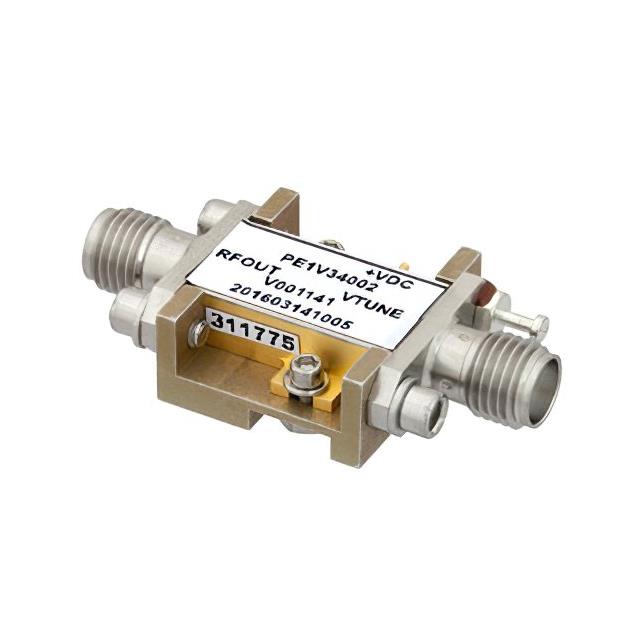

PE1V34002 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE1V34002
Product Number:
PE1V34002
MFR Standard Lead Time:
Package/Case:
Module, SMA Connectors
Detailed Description:
Voltage Controlled Oscillator (V
Datasheet:
Descnt:
10.25GHz Center Frequency 0 V ~ 13 V Voltage Controlled Oscillator 21 ±3 dBm -20 2nd Harmonic Typ (dBc)
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
8 ~ 12.5GHz
Frequency - Center
10.25GHz
Voltage - Supply
12V
Tuning Voltage (VDC)
0 V ~ 13 V
2nd Harmonic, Typ (dBc)
-20
Icc Max
195mA (Typ)
Pushing (MHz/V)
0.2
Power (dBm)
21 ±3
Phase Noise Typ (dBc/Hz)
-59
Operating Temperature
-40°C ~ 85°C
Package / Case
Module, SMA Connectors
Size / Dimension
0.640" L x 0.700" W (16.26mm x 17.78mm)
Height
0.291" (7.38mm)
-
Documents & Media
Additional Resources
Other Names
3985-PE1V34002
Standard Package
1
