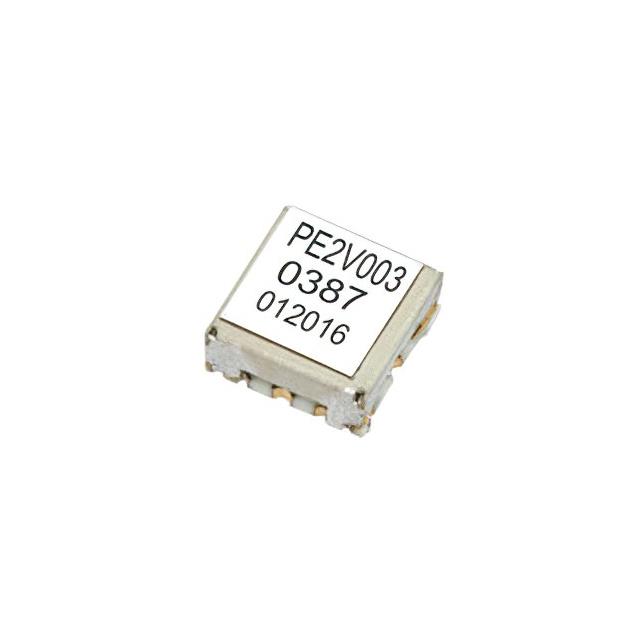

PE2V003 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE2V003
Product Number:
PE2V003
MFR Standard Lead Time:
Package/Case:
8-SMD Module
Detailed Description:
Surface Mount (SMT) Voltage Cont
Datasheet:
Descnt:
750MHz Center Frequency 0 V ~ 19 V Voltage Controlled Oscillator 6 -1, +2 dBm -10 2nd Harmonic Typ (dBc)
In Stock
5
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
500 ~ 1000MHz
Frequency - Center
750MHz
Voltage - Supply
10V
Tuning Voltage (VDC)
0 V ~ 19 V
2nd Harmonic, Typ (dBc)
-10
Icc Max
15mA
Pushing (MHz/V)
4
Power (dBm)
6 -1, +2
Phase Noise Typ (dBc/Hz)
-97
Operating Temperature
-40°C ~ 85°C
Package / Case
8-SMD Module
Size / Dimension
0.173" L x 0.173" W (4.40mm x 4.40mm)
Height
0.075" (1.90mm)
-
Documents & Media
Environmental & Export Classifications
ECCN
EAR99
HTSUS
8542.39.0000
Additional Resources
Other Names
3985-PE2V003
Standard Package
1
