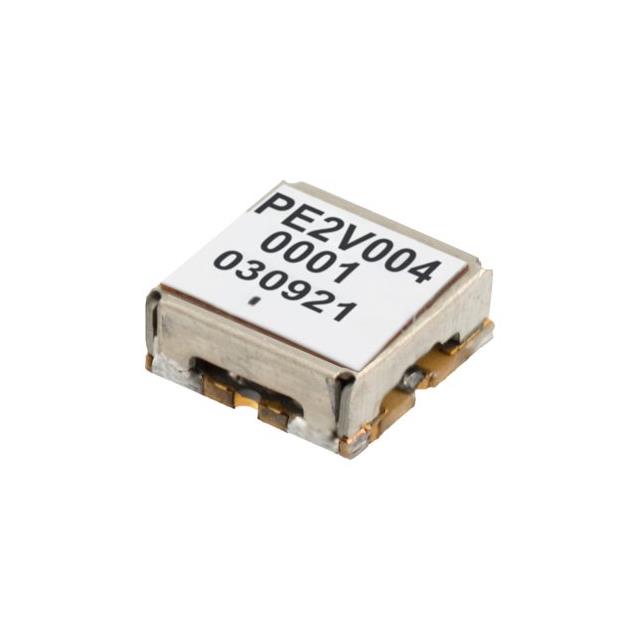

PE2V004 Pasternack
Favorite
Compare
Manufacturer:
Pasternack
MFR Product Number:
PE2V004
Product Number:
PE2V004
MFR Standard Lead Time:
Package/Case:
8-SMD Module
Detailed Description:
Surface Mount (SMT) Voltage Cont
Datasheet:
Descnt:
1.2GHz Center Frequency 0 V ~ 18 V Voltage Controlled Oscillator 11 -1, +2 dBm -17 2nd Harmonic Typ (dBc)
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pasternack
Series
-
Packaging
Retail Package
Part Status
Active
Frequency Range
800 ~ 1600MHz
Frequency - Center
1.2GHz
Voltage - Supply
5V
Tuning Voltage (VDC)
0 V ~ 18 V
2nd Harmonic, Typ (dBc)
-17
Icc Max
25mA
Pushing (MHz/V)
4
Power (dBm)
11 -1, +2
Phase Noise Typ (dBc/Hz)
-93
Operating Temperature
-40°C ~ 85°C
Package / Case
8-SMD Module
Size / Dimension
0.173" L x 0.173" W (4.40mm x 4.40mm)
Height
0.075" (1.90mm)
-
Documents & Media
Environmental & Export Classifications
ECCN
EAR99
HTSUS
8542.39.0000
Additional Resources
Other Names
3985-PE2V004
Standard Package
1
