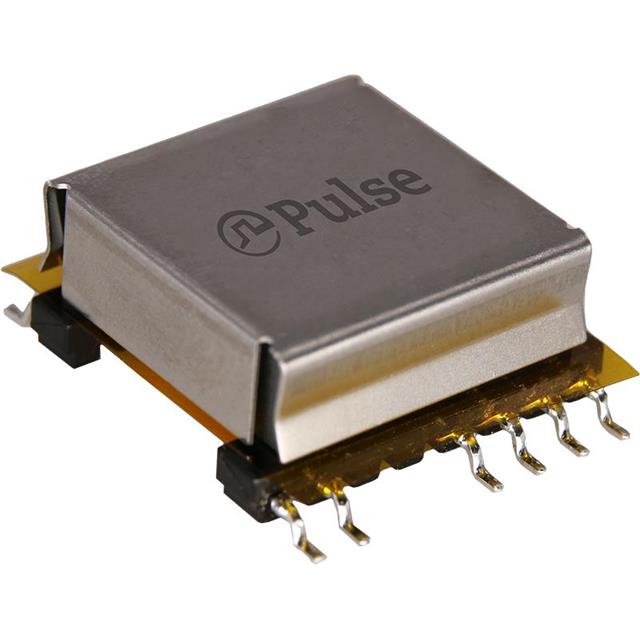

PG1895NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PG1895NLT
Product Number:
PG1895NLT
MFR Standard Lead Time:
11 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK 48UH SMD
Datasheet:
Descnt:
Flyback Converters For SMPS Transformer 2420V Isolation 100kHz Surface Mount
In Stock
92
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
-
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
12 ~ 36V
Voltage - Auxiliary
23V 30mA
Voltage - Isolation
2420V
Inductance Frequency
48µH 100kHz
Frequency
100kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
1.004" L x 1.063" W (25.50mm x 27.00mm)
Height - Seated (Max)
0.472" (12.00mm)
Footprint
1.157" L x 1.004" W (29.40mm x 25.50mm)
Style
Wirewound
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
100
