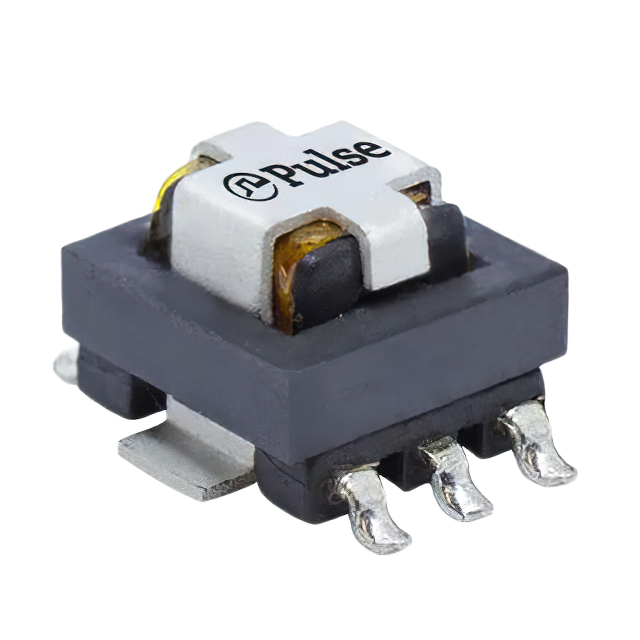

PH9494.100NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PH9494.100NLT
Product Number:
PH9494-100NLT
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 100:1 30A SMD
Datasheet:
Descnt:
30 A 100:1 Current Sense Transformer 20kHz 0.35mOhm Primary, 3Ohm Secondary 2.5 mH Surface Mount
In Stock
1721
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
PH9494.XXXNLT
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Active
Frequency Range
20kHz
Type
Invasive
Current Rating (Amps)
30 A
Inductance
2.5 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
100:1
Current Ratio
-
DC Resistance (DCR)
0.35mOhm Primary, 3Ohm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.504" L x 0.382" W (12.80mm x 9.70mm)
Height - Seated (Max)
0.283" (7.20mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
450
