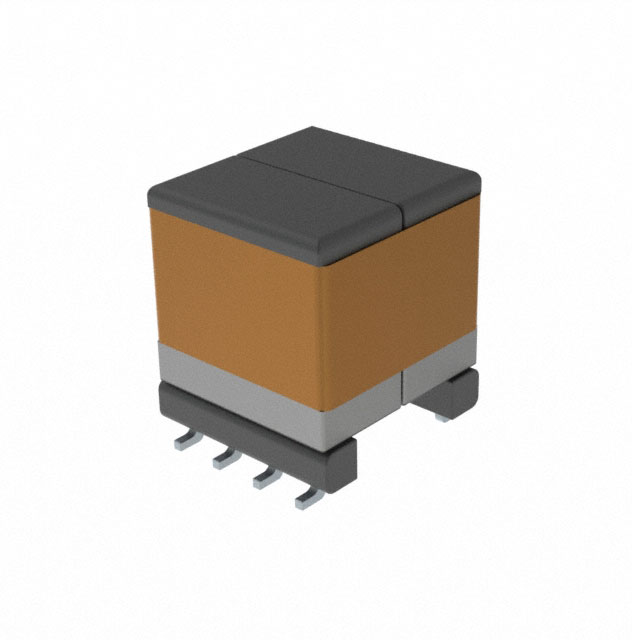

PH9496NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PH9496NLT
Product Number:
PH9496NLT
MFR Standard Lead Time:
15 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV SMD
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation 80kHz Surface Mount
In Stock
113
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
ACPL-32JT, ACPL-302J
Chipset Manufacturer
-
Voltage - Primary
8 ~ 18V
Voltage - Auxiliary
-
Voltage - Isolation
2500Vrms
Inductance Frequency
-
Frequency
80kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)
0.492" (12.50mm)
Style
-
Documents & Media
Datasheets
PH9496NLT Datasheet
SMT Isolation Transformers Selection Guide
Other Related Documents
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
175
