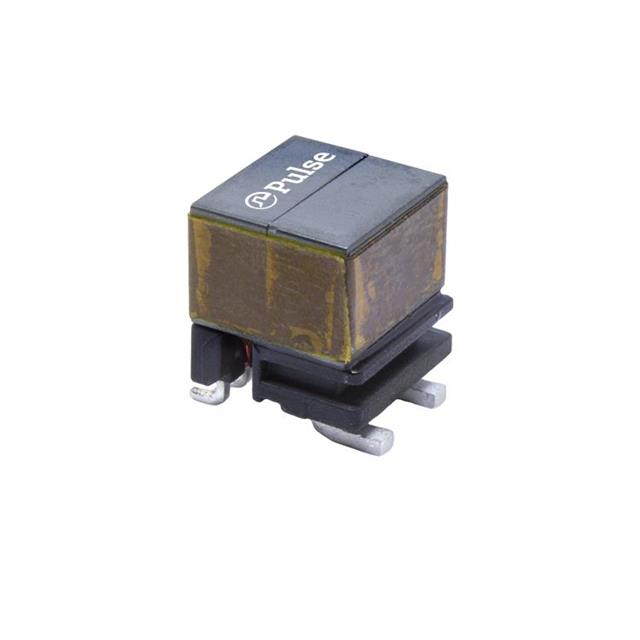

PH9505.050NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PH9505.050NLT
Product Number:
PH9505-050NLT
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:50 30A SMD
Datasheet:
Descnt:
30 A 1:50 Current Sense Transformer 20kHz 0.5mOhm Primary, 1.5Ohm Secondary Max 1.7 mH Surface Mount
In Stock
32
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
PH9505.XXXNL
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
20kHz
Type
Invasive
Current Rating (Amps)
30 A
Inductance
1.7 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:50
Current Ratio
-
DC Resistance (DCR)
0.5mOhm Primary, 1.5Ohm Secondary Max
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.504" L x 0.480" W (12.80mm x 12.20mm)
Height - Seated (Max)
0.567" (14.40mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
150
