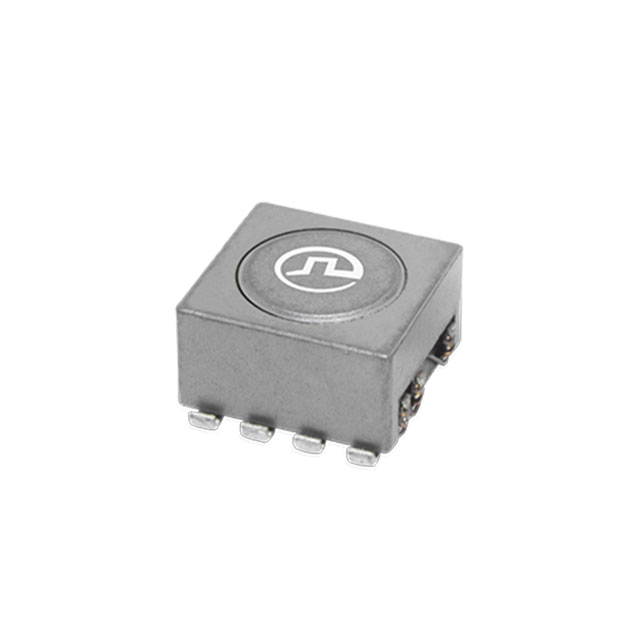

PH9585.003NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PH9585.003NLT
Product Number:
PH9585-003NLT
MFR Standard Lead Time:
15 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK SMD
Datasheet:
Descnt:
Flyback Converters For SMPS Transformer 2250V Isolation 430kHz Surface Mount
In Stock
4780
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
PH9585.XXXNLT
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
-
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
36 ~ 72V
Voltage - Auxiliary
15V
Voltage - Isolation
2250V
Inductance Frequency
-
Frequency
430kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
0.250" L x 0.242" W (6.35mm x 6.15mm)
Height - Seated (Max)
0.142" (3.60mm)
Footprint
0.252" L x 0.244" W (6.40mm x 6.20mm)
Style
Wirewound
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
HTSUS
0000.00.0000
Additional Resources
Other Names
Standard Package
1,200
