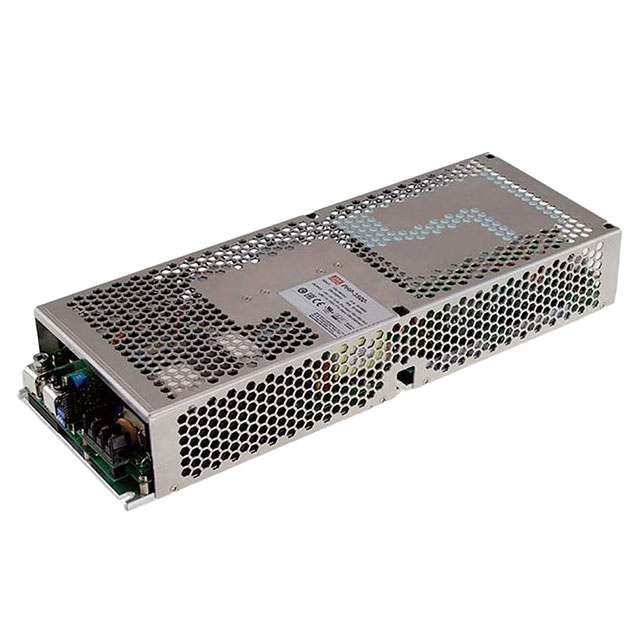

PHP-3500-24 MEAN WELL USA Inc.
Favorite
Compare
Manufacturer:
MEAN WELL USA Inc.
MFR Product Number:
PHP-3500-24
Product Number:
PHP-3500-24
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
AC/DC CONVERTER 24V 3480W
Datasheet:
Descnt:
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
MEAN WELL USA Inc.
Series
PHP-3500 (3500W)
Packaging
Box
Part Status
Active
Type
Enclosed
Number of Outputs
1
Voltage - Input
90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1
24V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Output 5
-
Voltage - Output 6
-
Current - Output 1
145 A
Power (Watts)
3480W
Applications
Household Appliances, ITE (Commercial)
Voltage - Isolation
3 kV
Efficiency
95%
Operating Temperature
-30°C ~ 70°C (With Derating)
Features
Adjustable Output, Load Sharing, PFC, PMBus™, Remote On/Off, Universal Input
Mounting Type
Chassis Mount
Size / Dimension
14.96" L x 5.57" W x 2.36" H (380.0mm x 141.4mm x 60.0mm)
Approval Agency
CB, CE, cURus, EAC, TUV
Minimum Load Required
-
Base Product Number
PHP-3500
-
Documents & Media
Datasheets
Environmental Information
Mean Well USA RoHS Cert
Mean Well USA REACH
PCN Design/Specification
label marking chg 29/DEC/2020
UHP/PHP-3500 Des Chg 17/Feb/2021
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9540
-
Additional Resources
Other Names
1866-PHP-3500-24
Standard Package
4
