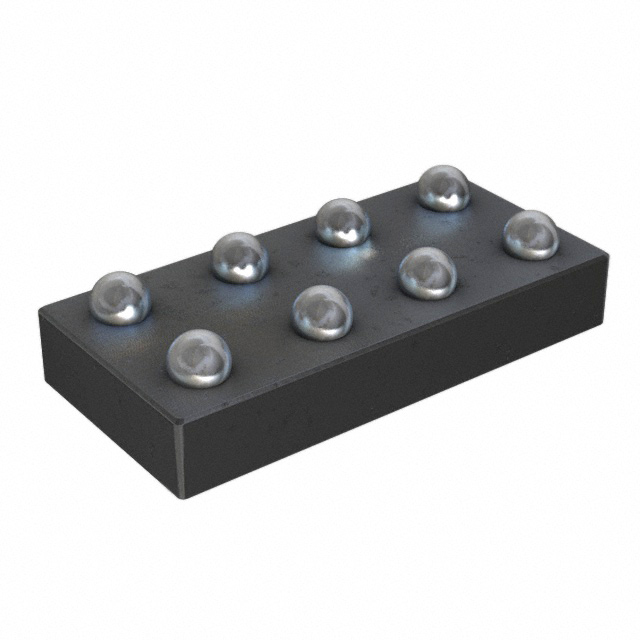

PI3PD22919GBEX Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
PI3PD22919GBEX
Product Number:
PI3PD22919GBEX
MFR Standard Lead Time:
Package/Case:
8-XFBGA, CSPBGA
Detailed Description:
IC PWR SWITCH N-CHAN 1:1 8CSP
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 4A 8-CSP (0.9x1.9)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
0.75V ~ 3.6V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
4A
Rds On (Typ)
7.1mOhm
Input Type
Non-Inverting
Features
Load Discharge, Slew Rate Controlled
Fault Protection
-
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
8-CSP (0.9x1.9)
Package / Case
8-XFBGA, CSPBGA
Base Product Number
PI3PD22919
Documents & Media
Environmental Information
PCN Packaging
Labeling Change 30/Sep/2016
Labeling Change Revision 12/Apr/2017
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
