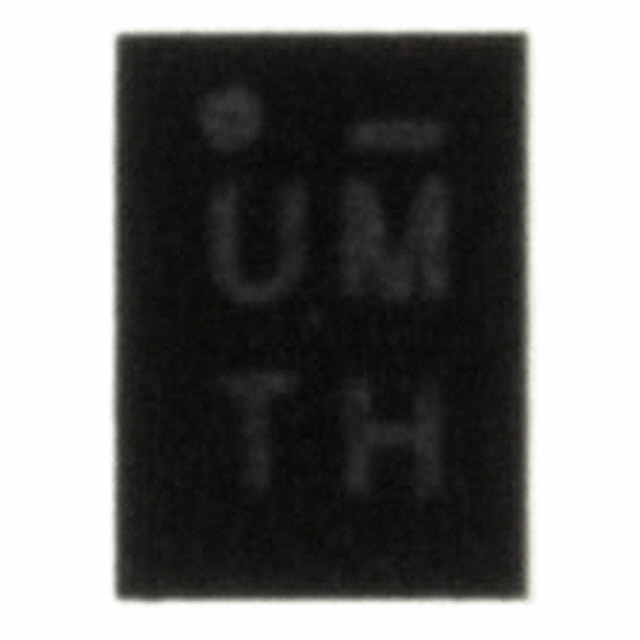

PI3USB10MZKEX Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
PI3USB10MZKEX
Product Number:
PI3USB10MZKEX
MFR Standard Lead Time:
Package/Case:
12-WFQFN Exposed Pad
Detailed Description:
IC USB SWITCH DUAL 2X1 12TQFN
Datasheet:
Descnt:
USB Switch IC 2 Channel 12-TQFN (1.6x2.2)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Obsolete
Applications
USB
Multiplexer/Demultiplexer Circuit
2:1
Switch Circuit
-
Number of Channels
2
On-State Resistance (Max)
6.5Ohm
Voltage - Supply, Single (V+)
2.7V ~ 5V
Voltage - Supply, Dual (V±)
-
-3db Bandwidth
700MHz
Features
Bi-Directional, USB 2.0
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
12-WFQFN Exposed Pad
Supplier Device Package
12-TQFN (1.6x2.2)
Base Product Number
PI3USB10
Documents & Media
Environmental Information
PCN Obsolescence/ EOL
Mult Dev EOL REV 28/Jun/2019
Mult Dev EOL 28/Jun/2019
PCN Packaging
Labeling Change 30/Sep/2016
Labeling Change Revision 12/Apr/2017
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,500
