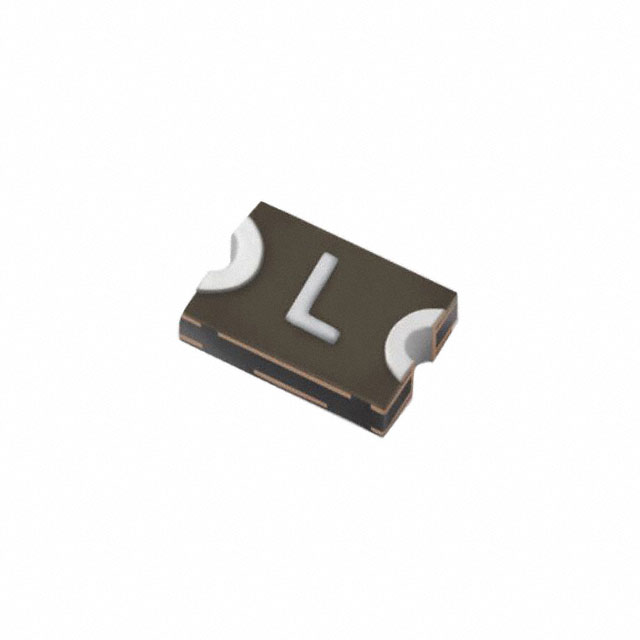

PICOASMDCH010F-2 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
PICOASMDCH010F-2
Product Number:
PICOASMDCH010F-2
MFR Standard Lead Time:
11 Weeks
Package/Case:
0805 (2012 Metric), Concave
Detailed Description:
PTC RESET FUSE 16V 100MA 0805
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 16V 100 mA Ih Surface Mount 0805 (2012 Metric), Concave
In Stock
3340
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, picoASMD
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Polymeric
Voltage - Max
16V
Current - Hold (Ih) (Max)
100 mA
Current - Trip (It)
600 mA
Current - Max
40 A
Time to Trip
1.5 s
Resistance - Initial (Ri) (Min)
1 Ohms
Resistance - Post Trip (R1) (Max)
10 Ohms
Operating Temperature
-40°C ~ 125°C
Grade
Automotive
Qualification
AEC-Q200
Ratings
-
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric), Concave
Size / Dimension
0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max)
-
Thickness (Max)
0.031" (0.78mm)
Lead Spacing
-
Approval Agency
-
-
Documents & Media
Datasheets
Video File
Littelfuse SMD Series picoASMDCH010F-2 | Digi-Key Daily
Basics of NTC and PTC Thermistors - Another Teaching Moment
Automotive High-Temperature SMD PolySwitch | Datasheet Preview
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
4,000
