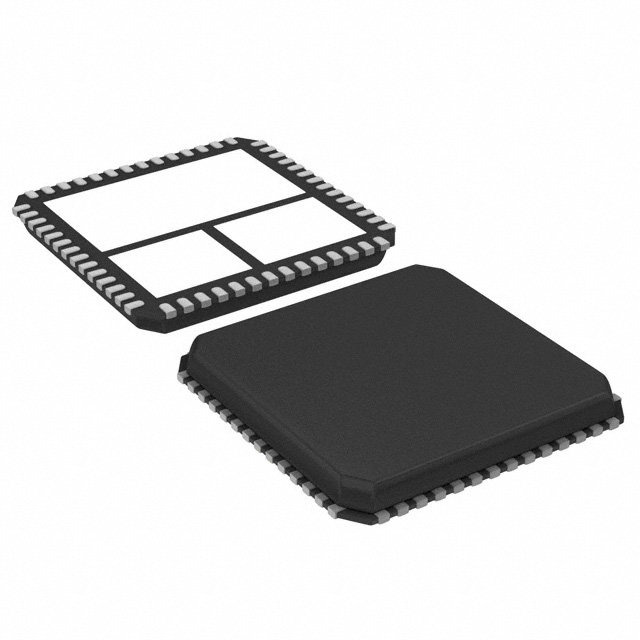

PIP213-12M,518 NXP USA Inc.
Favorite
Compare
Manufacturer:
NXP USA Inc.
MFR Product Number:
PIP213-12M,518
Product Number:
PIP213-12M-518
MFR Standard Lead Time:
Package/Case:
56-VFQFN Exposed Pad
Detailed Description:
IC HALF BRIDGE DRVR 25A 56HVQFN
Datasheet:
Descnt:
Half Bridge Driver Synchronous Buck Converters DrMOS 56-HVQFN (8x8)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
NXP USA Inc.
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Half Bridge
Applications
Synchronous Buck Converters
Interface
PWM
Load Type
Inductive
Technology
DrMOS
Rds On (Typ)
3.8mOhm LS, 6.5mOhm HS
Current - Output / Channel
25A
Current - Peak Output
40A
Voltage - Supply
3.3V ~ 16V
Voltage - Load
24V (Max)
Operating Temperature
-55°C ~ 150°C (TJ)
Features
Bootstrap Circuit, 5V Regulated Output
Fault Protection
Over Temperature, UVLO
Mounting Type
Surface Mount
Package / Case
56-VFQFN Exposed Pad
Supplier Device Package
56-HVQFN (8x8)
Base Product Number
PIP213
-
Documents & Media
Environmental Information
NXP USA Inc RoHS Cert
NXP USA Inc REACH
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,000
