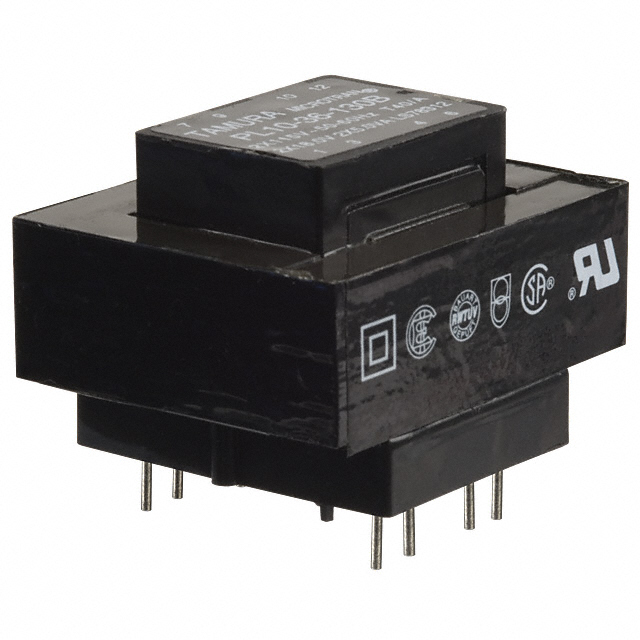

PL10-24-130B Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
PL10-24-130B
Product Number:
PL10-24-130B
MFR Standard Lead Time:
26 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 10VA TH
Datasheet:
Descnt:
In Stock
149
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
PL10-xx130B
Packaging
Tube
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 12V, Series 24V
Current - Output (Max)
Parallel 840mA, Series 420mA
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
No
Power - Max
10VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
47.60mm L x 39.70mm W
Height - Seated (Max)
36.20mm
Voltage - Isolation
3500Vrms
Weight
-
Documents & Media
Datasheets
Product Drawings
PL(T) Series Top
PL Series Schematic
PL Series Side
PL(T) Series Side
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.4035
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
40
