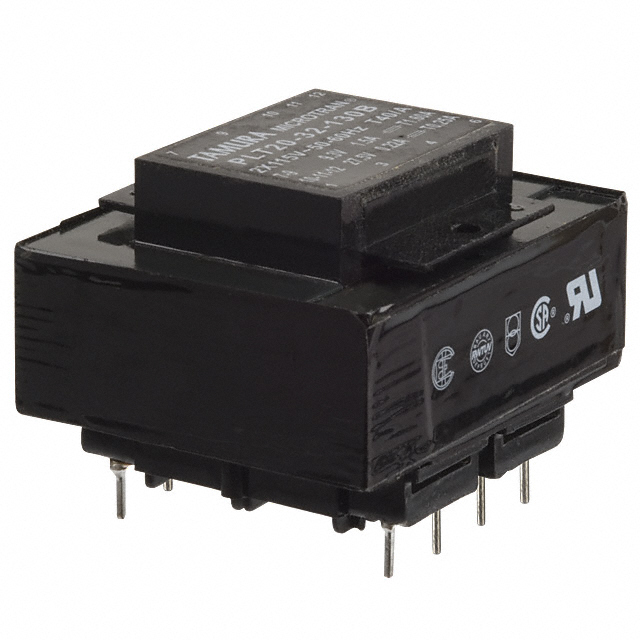

PLT20-32-130B Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
PLT20-32-130B
Product Number:
PLT20-32-130B
MFR Standard Lead Time:
Package/Case:
Detailed Description:
PWR XFMR LAMINATED 20VA TH
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
-
Packaging
Bulk
Part Status
Obsolete
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
Parallel 9.3V, Series 27.5V
Current - Output (Max)
Parallel 220mA, Series 1.5A
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Center Tap
Yes
Power - Max
20VA
Mounting Type
Through Hole
Termination Style
PC Pin
Size / Dimension
57.20mm L x 47.60mm W
Height - Seated (Max)
41.38mm
Voltage - Isolation
3500Vrms
Weight
-
Documents & Media
Product Drawings
PLT20-32 Drawing
PLT Series Schematic
PLT Series Side
PL(T) Series Side
PL(T) Series Top
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.4035
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
20
