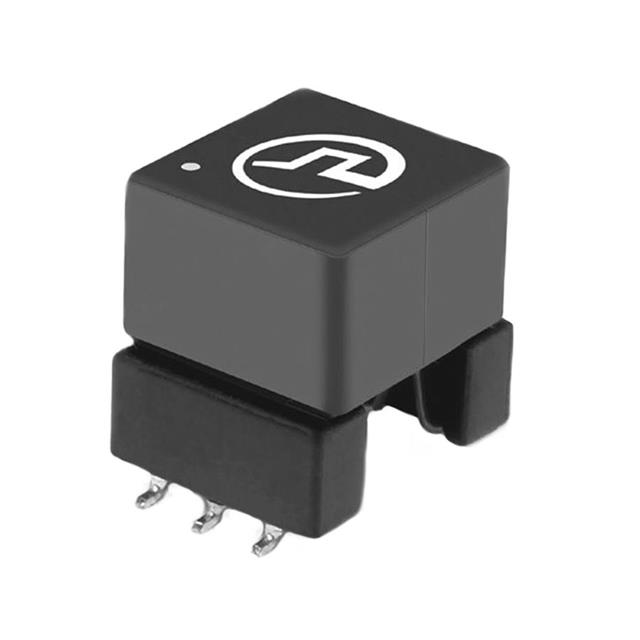

PM9595NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PM9595NLT
Product Number:
PM9595NLT
MFR Standard Lead Time:
14 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 13UH SMD
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 4300VDC Isolation 350kHz Surface Mount
In Stock
181
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
PM9595.XXNL
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
12V
Voltage - Auxiliary
-
Voltage - Isolation
4300VDC
Inductance Frequency
13µH
Frequency
350kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)
0.539" (13.70mm)
Footprint
0.512" L x 0.394" W (13.01mm x 10.00mm)
Style
Wirewound
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
150
