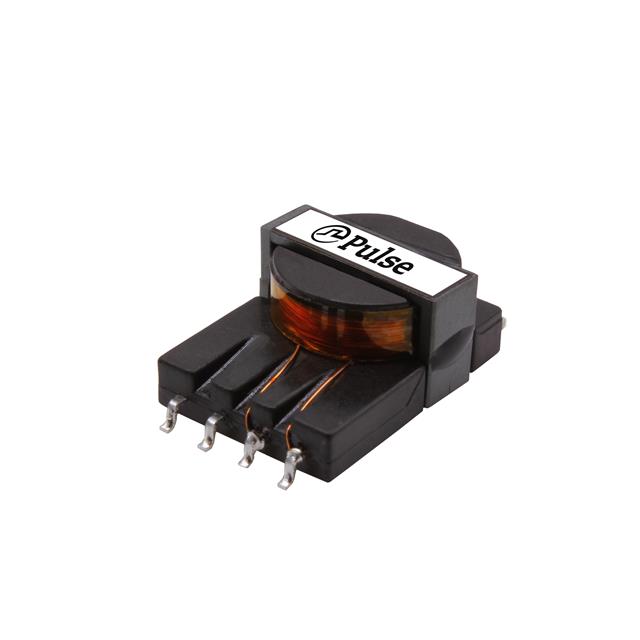

PMS6322.125NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PMS6322.125NLT
Product Number:
PMS6322-125NLT
MFR Standard Lead Time:
10 Weeks
Package/Case:
Detailed Description:
TRANSF CURRENT SENSE 1:125 50A
Datasheet:
Descnt:
50 A 1:125 Current Sense Transformer 20kHz ~ 1MHz 500µOhm Primary, 4.2Ohm Secondary (Max) 7 mH Surface Mount
In Stock
325
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
PMS6322.XXXNLT
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
20kHz ~ 1MHz
Type
Invasive
Current Rating (Amps)
50 A
Inductance
7 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:125
Current Ratio
-
DC Resistance (DCR)
500µOhm Primary, 4.2Ohm Secondary (Max)
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.122" L x 0.252" W (3.10mm x 6.40mm)
Height - Seated (Max)
0.295" (7.50mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
Standard Package
350
