PMS9505.070NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
PMS9505.070NLT
Product Number:
PMS9505-070NLT
MFR Standard Lead Time:
11 Weeks
Package/Case:
Detailed Description:

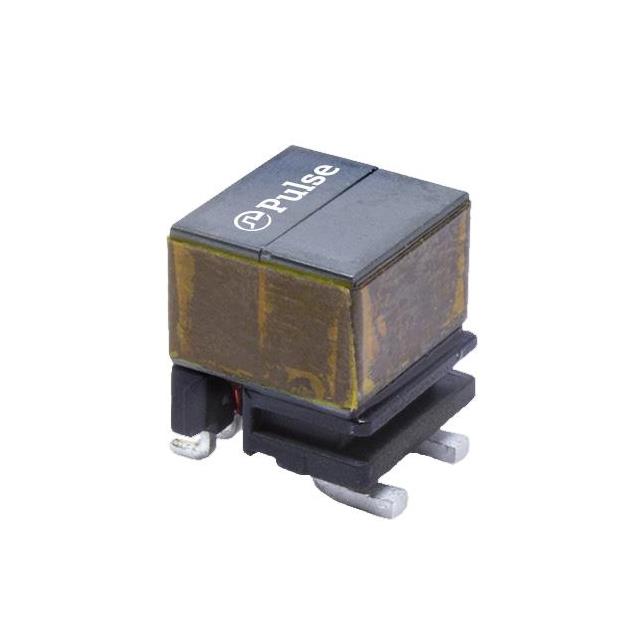

CURR SENSE XFMR 1:70 30A
Datasheet:
Descnt:
30 A 1:70 Current Sense Transformer 20kHz 500µOhm Primary, 2.1Ohm Secondary (Max) 3 mH Surface Mount
In Stock
299
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
Artix® UltraScale+
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
20kHz
Type
Invasive
Current Rating (Amps)
30 A
Inductance
3 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:70
Current Ratio
-
DC Resistance (DCR)
500µOhm Primary, 2.1Ohm Secondary (Max)
Ratings
AEC-Q200
Mounting Type
Surface Mount
Size / Dimension
0.504" L x 0.480" W (12.80mm x 12.20mm)
Height - Seated (Max)
0.567" (14.40mm)
Termination Style
Gull Wing
Weight
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
Standard Package
150
