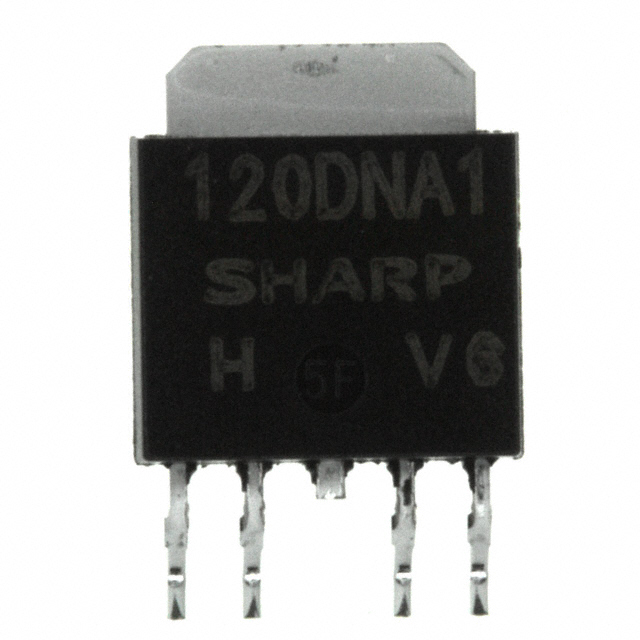

PQ120DNA1ZPH Sharp Microelectronics
Favorite
Compare
Manufacturer:
Sharp Microelectronics
MFR Product Number:
PQ120DNA1ZPH
Product Number:
PQ120DNA1ZPH
MFR Standard Lead Time:
Package/Case:
TO-252-5, DPAK (4 Leads + Tab), TO-252AD
Detailed Description:
IC REG LINEAR 12V 1A SC63
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SC-63
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Sharp Microelectronics
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
24V
Voltage - Output (Min/Fixed)
12V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.5V 500mA
Current - Output
1A
Current - Quiescent (Iq)
8 mA
PSRR
60dB (120Hz)
Control Features
Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
TO-252-5, DPAK (4 Leads + Tab), TO-252AD
Supplier Device Package
SC-63
Base Product Number
PQ120
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
3,000
