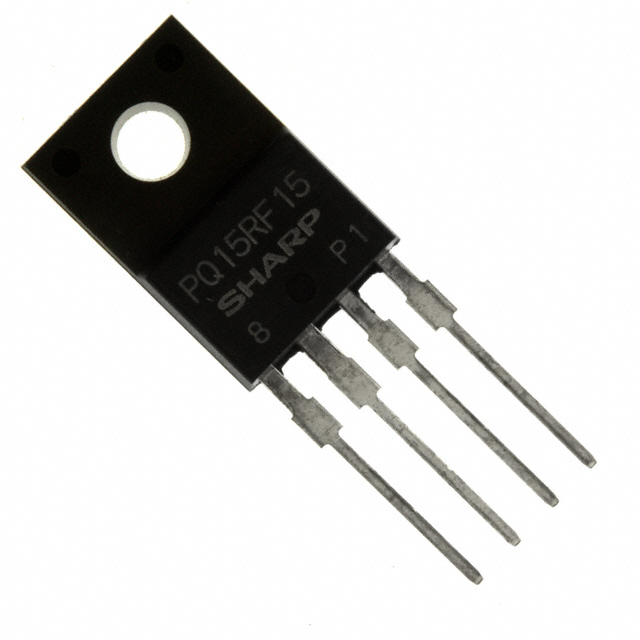

PQ15RF15 Sharp Microelectronics
Favorite
Compare
Manufacturer:
Sharp Microelectronics
MFR Product Number:
PQ15RF15
Product Number:
PQ15RF15
MFR Standard Lead Time:
Package/Case:
TO-220-4
Detailed Description:
IC REG LINEAR 15.7V 1A TO220-4
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220-4
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Sharp Microelectronics
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
35V
Voltage - Output (Min/Fixed)
15.7V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.5A 500mA
Current - Output
1A
Current - Quiescent (Iq)
20 µA
PSRR
65dB (120Hz)
Control Features
Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-20°C ~ 80°C
Mounting Type
Through Hole
Package / Case
TO-220-4
Supplier Device Package
TO-220-4
Base Product Number
PQ15
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
425-1633-5
Standard Package
50
