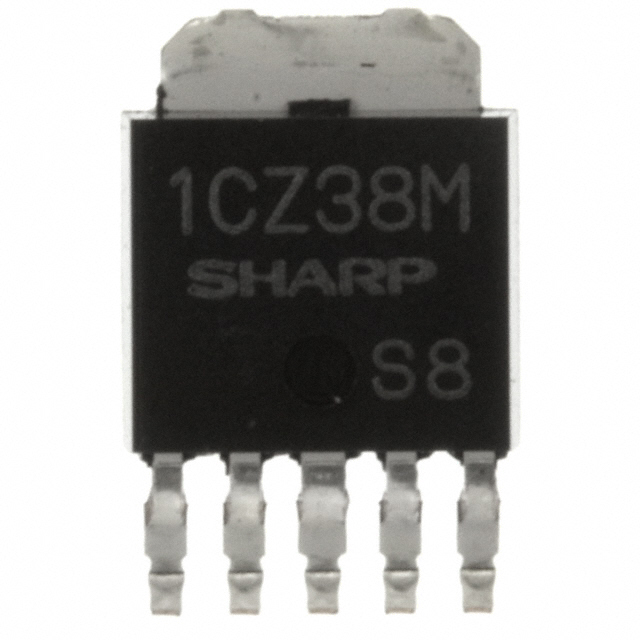

PQ1CZ38M2ZZ Sharp Microelectronics
Favorite
Compare
Manufacturer:
Sharp Microelectronics
MFR Product Number:
PQ1CZ38M2ZZ
Product Number:
PQ1CZ38M2ZZ
MFR Standard Lead Time:
Package/Case:
TO-252-6, DPAK (5 Leads + Tab)
Detailed Description:
IC REG BUCK ADJ 800MA SC63
Datasheet:
Descnt:
Buck Switching Regulator IC Positive or Negative Adjustable ±1.26V 1 Output 800mA TO-252-6, DPAK (5 Leads + Tab)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Sharp Microelectronics
Series
-
Packaging
Tube
Part Status
Obsolete
Function
Step-Down
Output Configuration
Positive or Negative
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
8V
Voltage - Input (Max)
35V
Voltage - Output (Min/Fixed)
±1.26V
Voltage - Output (Max)
35V, -30V
Current - Output
800mA
Frequency - Switching
300kHz
Synchronous Rectifier
No
Operating Temperature
-20°C ~ 80°C (TA)
Mounting Type
Surface Mount
Package / Case
TO-252-6, DPAK (5 Leads + Tab)
Supplier Device Package
SC-63
Base Product Number
PQ1CZ38
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
425-1769-5
Standard Package
50
