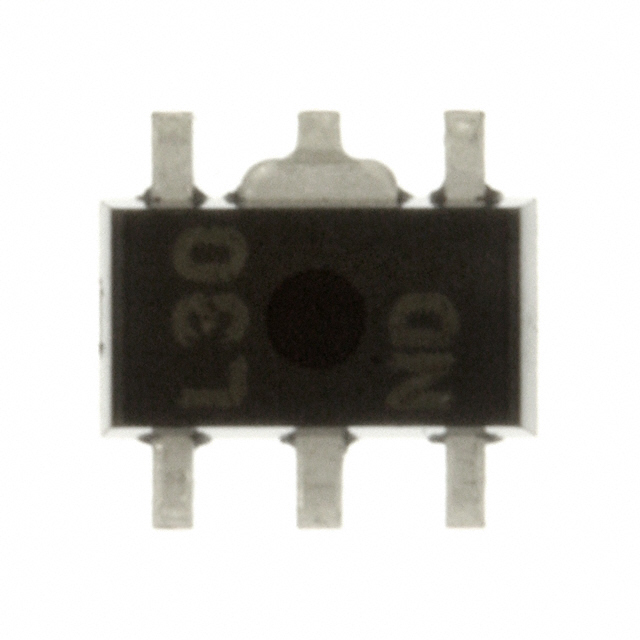

PQ1L503M2SP Sharp Microelectronics
Favorite
Compare
Manufacturer:
Sharp Microelectronics
MFR Product Number:
PQ1L503M2SP
Product Number:
PQ1L503M2SP
MFR Standard Lead Time:
Package/Case:
SOT-89-5/6
Detailed Description:
IC REG LINEAR 5V 300MA SOT89
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-89
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Sharp Microelectronics
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
16V
Voltage - Output (Min/Fixed)
5V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.7V 300mA
Current - Output
300mA
Current - Quiescent (Iq)
500 µA
PSRR
-
Control Features
Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-30°C ~ 80°C
Mounting Type
Surface Mount
Package / Case
SOT-89-5/6
Supplier Device Package
SOT-89
Base Product Number
PQ1L
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
1,000
