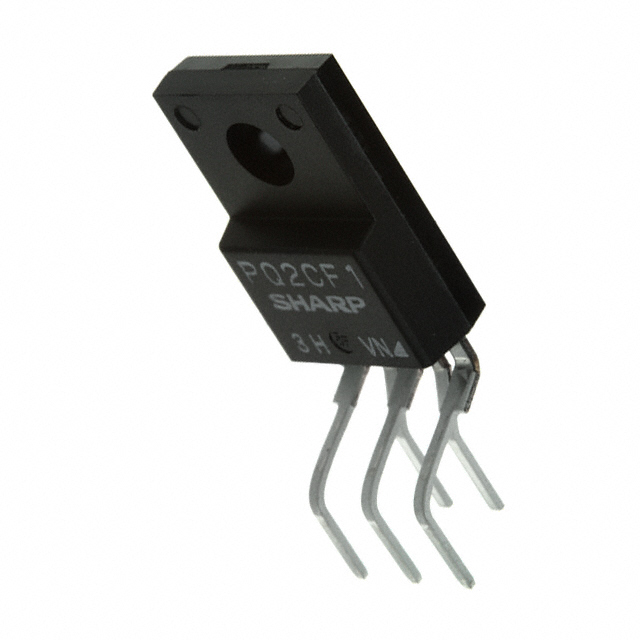

PQ2CF1J0000H Sharp Microelectronics
Favorite
Compare
Manufacturer:
Sharp Microelectronics
MFR Product Number:
PQ2CF1J0000H
Product Number:
PQ2CF1J0000H
MFR Standard Lead Time:
Package/Case:
TO-220-5 Formed Leads
Detailed Description:
IC REG BST FLYBCK ADJ 2.5A TO220
Datasheet:
Descnt:
Boost, Flyback Switching Regulator IC Positive Adjustable 4.5V 1 Output 2.5A (Switch) TO-220-5 Formed Leads
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Sharp Microelectronics
Series
-
Packaging
Tube
Part Status
Obsolete
Function
Step-Up, Step-Up/Step-Down
Output Configuration
Positive
Topology
Boost, Flyback
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3.5V
Voltage - Input (Max)
10V
Voltage - Output (Min/Fixed)
4.5V
Voltage - Output (Max)
35V (Switch)
Current - Output
2.5A (Switch)
Frequency - Switching
50kHz
Synchronous Rectifier
No
Operating Temperature
-20°C ~ 80°C (TA)
Mounting Type
Through Hole
Package / Case
TO-220-5 Formed Leads
Supplier Device Package
TO-220
Base Product Number
PQ2CF1
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
425-2340-5
Standard Package
50
