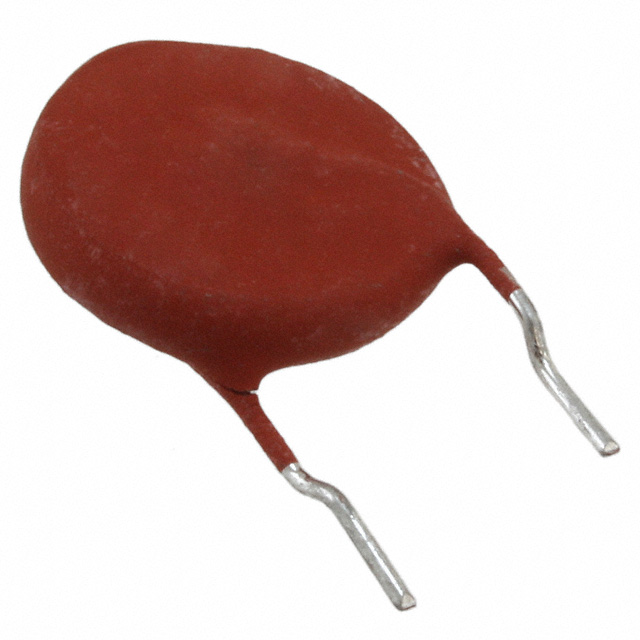

PTGL13AR100H8B72B0 Murata Electronics
Favorite
Compare
Manufacturer:
Murata Electronics
MFR Product Number:
PTGL13AR100H8B72B0
Product Number:
PTGL13AR100H8B72B0
MFR Standard Lead Time:
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 265V 260MA RADIAL
Datasheet:
Descnt:
Ceramic PTC Resettable Fuse 265V 260 mA Ih Through Hole Radial, Disc
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Murata Electronics
Series
POSISTOR®, PTGL
Packaging
Bulk
Part Status
Obsolete
Type
Ceramic
Voltage - Max
265V
Current - Hold (Ih) (Max)
260 mA
Current - Trip (It)
480 mA
Current - Max
2.2 A
Resistance - 25°C (Typ)
10 Ohms
Operating Temperature
-10°C ~ 60°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.532" Dia x 0.157" T (13.50mm x 4.00mm)
Height - Seated (Max)
0.768" (19.50mm)
Thickness (Max)
-
Lead Spacing
0.295" (7.50mm)
Approval Agency
UL
Base Product Number
PTGL13AR
Documents & Media
PCN Obsolescence/ EOL
Mult Series 01/Mar/2021
PT - End of Life 30/MAR/2018
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
ECCN
EAR99
HTSUS
8533.40.8070
Additional Resources
Other Names
Standard Package
150
