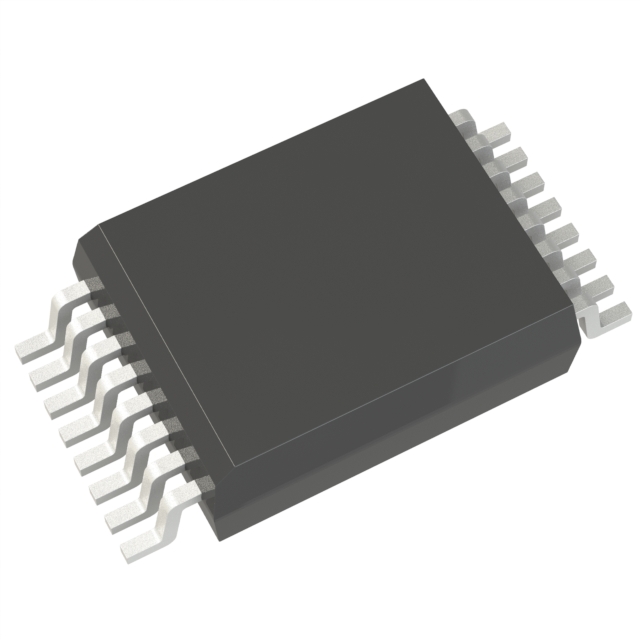

PTPSI3100QDVXRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
PTPSI3100QDVXRQ1
Product Number:
PTPSI3100QDVXRQ1
MFR Standard Lead Time:
Package/Case:
16-BSSOP (0.295\, 7.50mm Width)
Detailed Description:
IC
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 2.5A 16-SSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Switch Type
Relay, Solenoid Driver
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
15.8V
Voltage - Supply (Vcc/Vdd)
4.5V ~ 5.5V
Current - Output (Max)
2.5A
Rds On (Typ)
3.6Ohm
Input Type
Non-Inverting
Features
-
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
16-SSOP
Package / Case
16-BSSOP (0.295", 7.50mm Width)
-
Documents & Media
Additional Resources
Other Names
296-PTPSI3100QDVXRQ1TR
Standard Package
1,000
