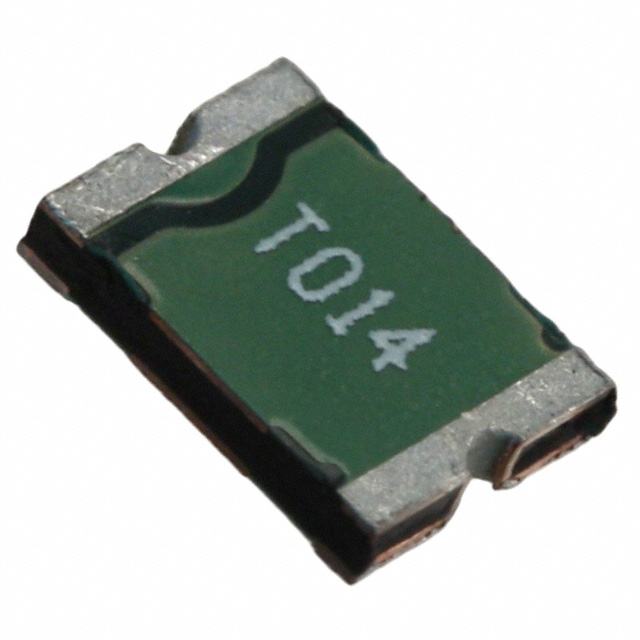

PTS181260V014 Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
PTS181260V014
Product Number:
PTS181260V014
MFR Standard Lead Time:
13 Weeks
Package/Case:
1812 (4532 Metric), Concave
Detailed Description:
PTC RESET FUSE 60V 140MA 1812
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 60V 140 mA Ih Surface Mount 1812 (4532 Metric), Concave
In Stock
2144
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Eaton - Electronics Division
Series
PTS1812
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Polymeric
Voltage - Max
60V
Current - Hold (Ih) (Max)
140 mA
Current - Trip (It)
340 mA
Current - Max
10 A
Time to Trip
200 ms
Resistance - Initial (Ri) (Min)
1.5 Ohms
Resistance - Post Trip (R1) (Max)
6 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
1812 (4532 Metric), Concave
Size / Dimension
0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max)
-
Thickness (Max)
0.035" (0.90mm)
Lead Spacing
-
Approval Agency
cURus, TUV
-
Documents & Media
Datasheets
Video File
Eaton Automotive Electronics Solutions
Basics of NTC and PTC Thermistors - Another Teaching Moment
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
-
Additional Resources
Other Names
Standard Package
2,000
