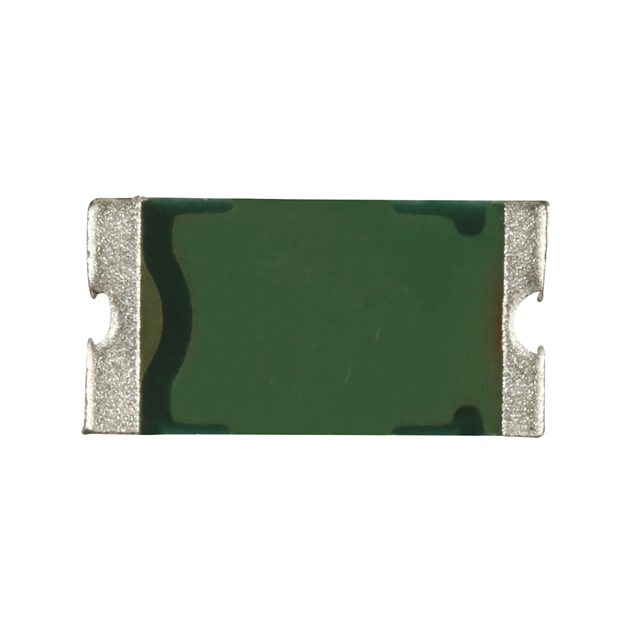

PTSA120660V010 Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
PTSA120660V010
Product Number:
PTSA120660V010
MFR Standard Lead Time:
13 Weeks
Package/Case:
1206 (3216 Metric), Concave
Detailed Description:
PTC RESET FUSE 100MA 60V 1206
Datasheet:
Descnt:
PTC Resettable Fuse 60V 100 mA Ih Surface Mount 1206 (3216 Metric), Concave
In Stock
8000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Eaton - Electronics Division
Series
PTSA1206
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
-
Voltage - Max
60V
Current - Hold (Ih) (Max)
100 mA
Current - Trip (It)
250 mA
Current - Max
10 A
Time to Trip
200 ms
Resistance - Initial (Ri) (Min)
1.6 Ohms
Resistance - Post Trip (R1) (Max)
15 Ohms
Operating Temperature
-40°C ~ 85°C
Grade
Automotive
Qualification
AEC-Q200
Ratings
-
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric), Concave
Size / Dimension
0.132" L x 0.067" W (3.35mm x 1.70mm)
Height - Seated (Max)
-
Thickness (Max)
0.039" (1.00mm)
Lead Spacing
-
Approval Agency
UL
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
-
Additional Resources
Other Names
Standard Package
4,000
