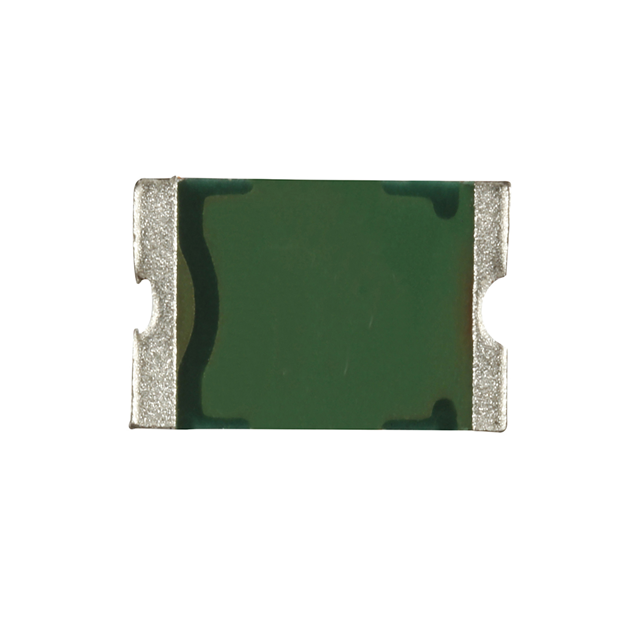

PTSA121013V050 Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
PTSA121013V050
Product Number:
PTSA121013V050
MFR Standard Lead Time:
13 Weeks
Package/Case:
1210 (3225 Metric), Concave
Detailed Description:
PTC RESET FUSE 500MA 13V 1210
Datasheet:
Descnt:
PTC Resettable Fuse 13.2V 500 mA Ih Surface Mount 1210 (3225 Metric), Concave
In Stock
3977
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Eaton - Electronics Division
Series
PTSA1210
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
-
Voltage - Max
13.2V
Current - Hold (Ih) (Max)
500 mA
Current - Trip (It)
1 A
Current - Max
40 A
Time to Trip
100 ms
Resistance - Initial (Ri) (Min)
150 mOhms
Resistance - Post Trip (R1) (Max)
1 Ohms
Operating Temperature
-40°C ~ 85°C
Grade
Automotive
Qualification
AEC-Q200
Ratings
-
Mounting Type
Surface Mount
Package / Case
1210 (3225 Metric), Concave
Size / Dimension
0.128" L x 0.098" W (3.25mm x 2.50mm)
Height - Seated (Max)
-
Thickness (Max)
0.033" (0.85mm)
Lead Spacing
-
Approval Agency
UL
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
Additional Resources
Other Names
Standard Package
4,000
