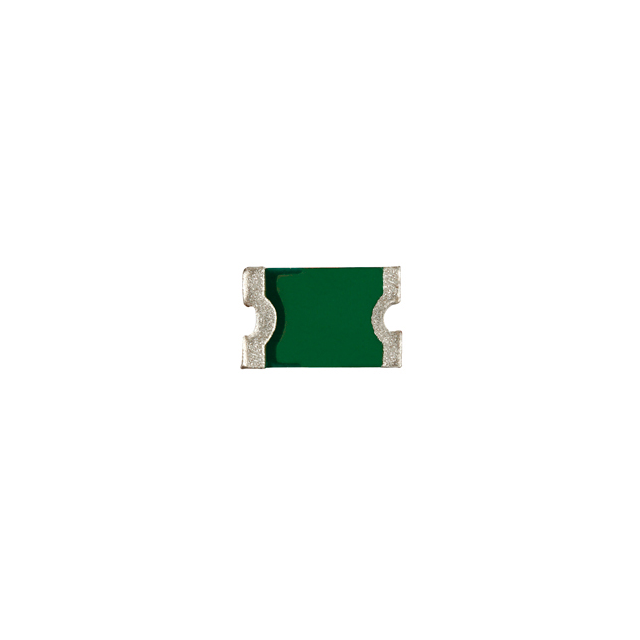

PTSAHT080516V010 Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
PTSAHT080516V010
Product Number:
PTSAHT080516V010
MFR Standard Lead Time:
13 Weeks
Package/Case:
0805 (2012 Metric), Concave
Detailed Description:
PTC RESET FUSE 100MA 16V 0805
Datasheet:
Descnt:
PTC Resettable Fuse 16V 100 mA Ih Surface Mount 0805 (2012 Metric), Concave
In Stock
9815
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Eaton - Electronics Division
Series
PTSAHT0805
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
-
Voltage - Max
16V
Current - Hold (Ih) (Max)
100 mA
Current - Trip (It)
600 mA
Current - Max
40 A
Time to Trip
1.5 s
Resistance - Initial (Ri) (Min)
1 Ohms
Resistance - Post Trip (R1) (Max)
10 Ohms
Operating Temperature
-40°C ~ 125°C
Grade
Automotive
Qualification
AEC-Q200
Ratings
-
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric), Concave
Size / Dimension
0.089" L x 0.059" W (2.25mm x 1.50mm)
Height - Seated (Max)
-
Thickness (Max)
0.031" (0.80mm)
Lead Spacing
-
Approval Agency
UL
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
-
Additional Resources
Other Names
Standard Package
4,000
