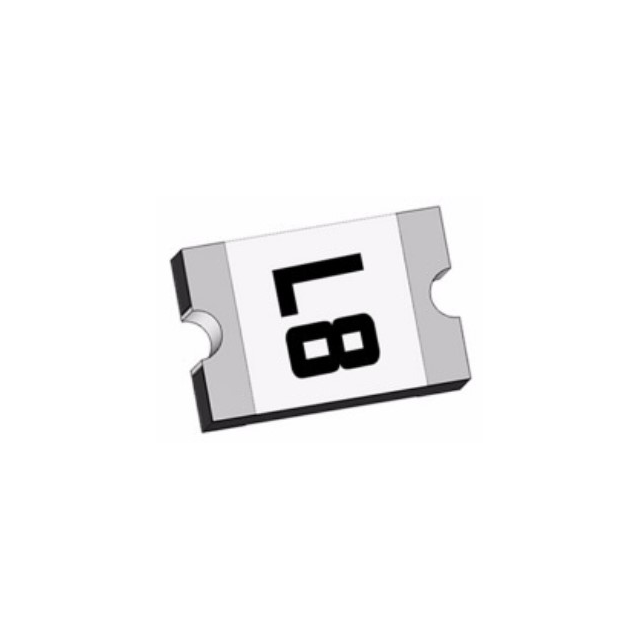

PTSLR12066V075 Eaton - Electronics Division
Favorite
Compare
Manufacturer:
Eaton - Electronics Division
MFR Product Number:
PTSLR12066V075
Product Number:
PTSLR12066V075
MFR Standard Lead Time:
13 Weeks
Package/Case:
1206 (3216 Metric), Concave
Detailed Description:
PTC RESET FUSE 6V 750MA 1206
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 6V 750 mA Ih Surface Mount 1206 (3216 Metric), Concave
In Stock
5876
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Eaton - Electronics Division
Series
PTSLR1206
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Polymeric
Voltage - Max
6V
Current - Hold (Ih) (Max)
750 mA
Current - Trip (It)
1.5 A
Current - Max
50 A
Time to Trip
300 ms
Resistance - Initial (Ri) (Min)
17 mOhms
Resistance - Post Trip (R1) (Max)
180 mOhms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric), Concave
Size / Dimension
0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max)
-
Thickness (Max)
0.028" (0.70mm)
Lead Spacing
-
Approval Agency
cURus, TUV
-
Documents & Media
Datasheets
Video File
Bussmann PTSLR Surface Mount Low Resistance PTC Resttable Fuses
Basics of NTC and PTC Thermistors - Another Teaching Moment
PTSLR surface mount low resistance PTC resettable fuses
Featured Product
Low Resistance SMD Polymeric PTC Resettable Fuse - PTSLR Series
Low-Resistance SMT PTC Resettable Fuses – PTSLR Series
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
ECCN
EAR99
HTSUS
8533.40.8070
Additional Resources
Other Names
Standard Package
5,000
