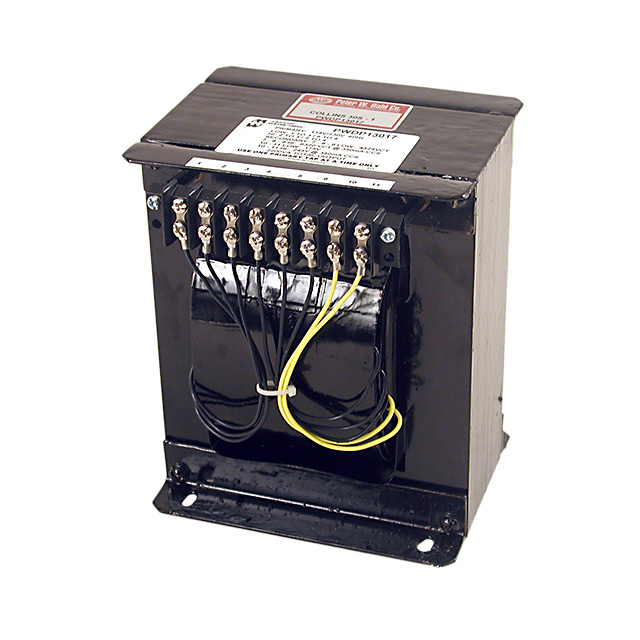

PWDP13017 Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
PWDP13017
Product Number:
PWDP13017
MFR Standard Lead Time:
4 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED CHAS MT
Datasheet:
Descnt:
In Stock
4
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
PWDAHL
Packaging
Case
Part Status
Active
Type
Laminated Core
Voltage - Primary
115V, 230V
Voltage - Secondary (Full Load)
6320V, 245V
Current - Output (Max)
350mA
Primary Winding(s)
-
Secondary Winding(s)
Dual
Center Tap
-
Power - Max
-
Mounting Type
Chassis Mount
Termination Style
Terminal Block
Size / Dimension
181.74mm L x 190.50mm W
Height - Seated (Max)
241.30mm
Voltage - Isolation
-
Weight
104 lb (47.2 kg)
Shipping Info
50+ lbs that are bolted to a wooden crate to keep them from falling over and being damaged during transit
Base Product Number
PWDP13
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4065
-
Additional Resources
Other Names
Standard Package
1
