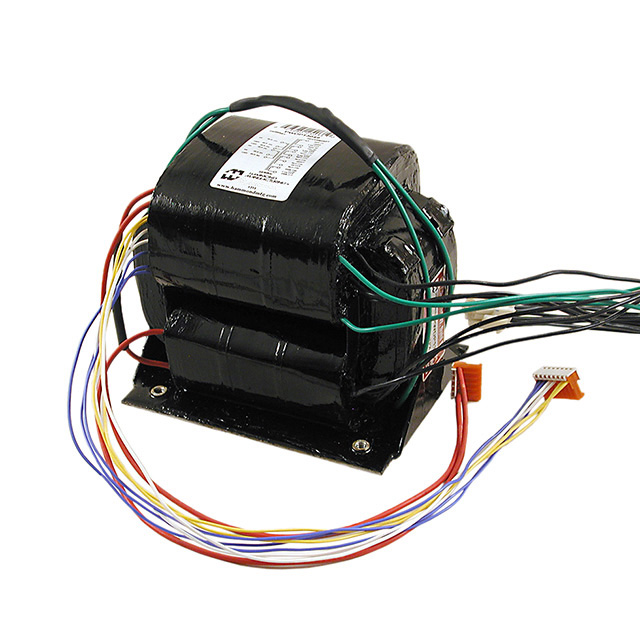

PWDP13049 Hammond Manufacturing
Favorite
Compare
Manufacturer:
Hammond Manufacturing
MFR Product Number:
PWDP13049
Product Number:
PWDP13049
MFR Standard Lead Time:
6 Weeks
Package/Case:
Detailed Description:
PWR XFMR LAMINATED CHAS MT
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Hammond Manufacturing
Series
PWDAHL
Packaging
Case
Part Status
Active
Type
Laminated Core
Voltage - Primary
100V, 120V
Voltage - Secondary (Full Load)
2050V, 390V, 105V, 28V, 13.3V
Current - Output (Max)
500mA, 3A, 7.2A
Primary Winding(s)
-
Secondary Winding(s)
-
Center Tap
Yes
Power - Max
-
Mounting Type
Chassis Mount
Termination Style
Wire Leads
Size / Dimension
196.85mm L x 158.75mm W
Height - Seated (Max)
168.27mm
Voltage - Isolation
-
Weight
-
Base Product Number
PWDP13
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.4035
-
Additional Resources
Other Names
Standard Package
1
