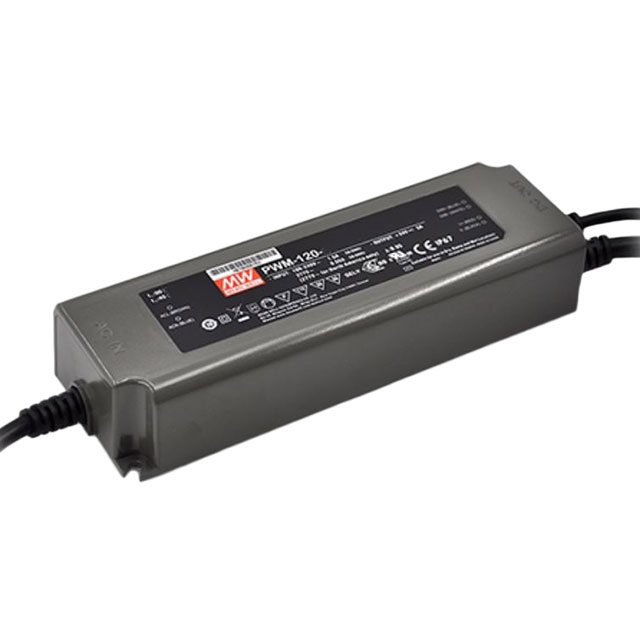

PWM-120-12DA MEAN WELL USA Inc.
Favorite
Compare
Manufacturer:
MEAN WELL USA Inc.
MFR Product Number:
PWM-120-12DA
Product Number:
PWM-120-12DA
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
LED DRIVERS POWER SUPPLIES 120W
Datasheet:
Descnt:
10A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
MEAN WELL USA Inc.
Series
PWM-120 (120W)
Packaging
Box
Part Status
Active
DigiKey Programmable
Not Verified
Type
Constant Voltage
Topology
AC DC Converter
Number of Outputs
1
Voltage - Input (Min)
90VAC
Voltage - Input (Max)
305VAC
Voltage - Output
12V
Current - Output (Max)
10A
Power (Watts)
120 W
Voltage - Isolation
3.75 kV
Dimming
-
Features
OCP, OTP, OVP, SCP
Ratings
IP67
Operating Temperature
-40°C ~ 90°C
Efficiency
88%
Termination Style
Wire Leads
Size / Dimension
7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm)
Approval Agency
CB, CCC, CE, cURus, EAC, ENEC, RCM
Mounting Type
Chassis Mount
Base Product Number
PWM-120
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9520
-
Additional Resources
Other Names
1866-5428
Standard Package
15
