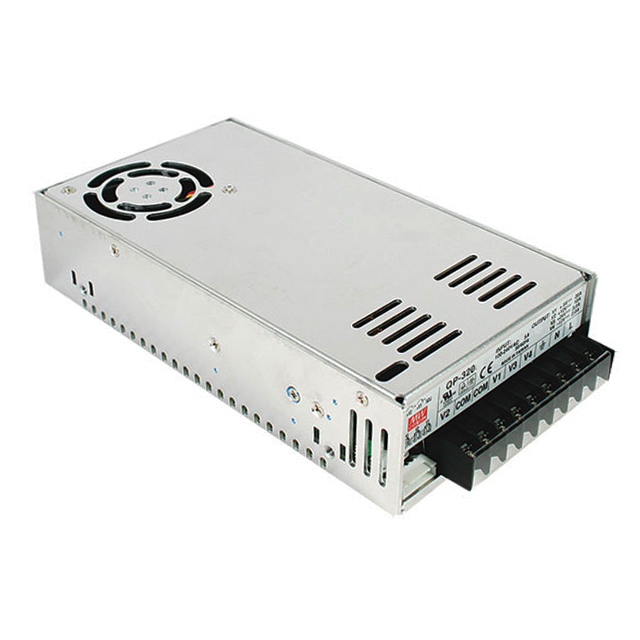

QP-320F MEAN WELL USA Inc.
Favorite
Compare
Manufacturer:
MEAN WELL USA Inc.
MFR Product Number:
QP-320F
Product Number:
QP-320F
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
AC/DC CNVRT 5V 15V 24V -15V 316W
Datasheet:
Descnt:
Enclosed AC DC Converters 4 Output 5V 15V 24V -15V 90 ~ 264 VAC, 127 ~ 370 VDC Input
In Stock
22
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
MEAN WELL USA Inc.
Series
QP-320 (320W)
Packaging
Box
Part Status
Active
Type
Enclosed
Number of Outputs
4
Voltage - Input
90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1
5V
Voltage - Output 2
15V
Voltage - Output 3
24V
Voltage - Output 4
-15V
Voltage - Output 6
-
Current - Output 1
20 A
Current - Output 2
8 A
Current - Output 3
3 A
Current - Output 4
1.6 A
Power (Watts)
316W
Applications
ITE (Commercial)
Voltage - Isolation
3 kV
Efficiency
83%
Operating Temperature
-10°C ~ 70°C (With Derating)
Features
Adjustable Output, PFC, Remote Sense, Universal Input
Mounting Type
Chassis Mount
Size / Dimension
8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm)
Approval Agency
CE, cURus, TUV
Minimum Load Required
Yes
Base Product Number
QP-320
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9530
-
Additional Resources
Other Names
Standard Package
12
