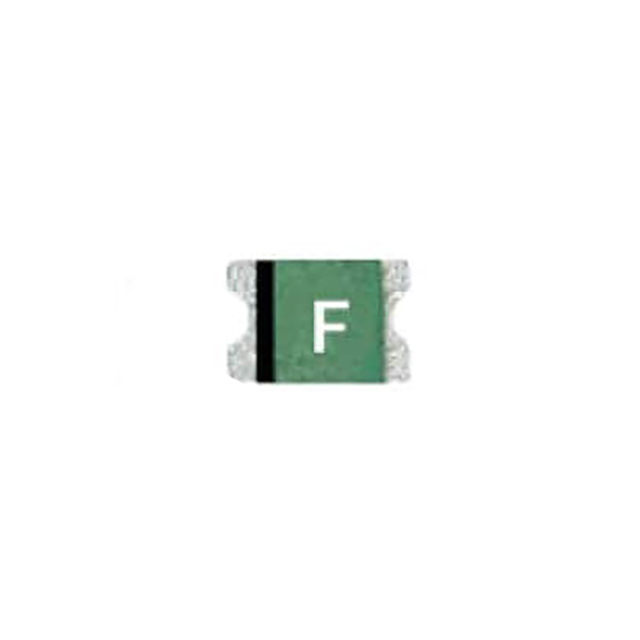

R0603-010-R OptiFuse
Favorite
Compare
Manufacturer:
OptiFuse
MFR Product Number:
R0603-010-R
Product Number:
R0603-010-R
MFR Standard Lead Time:
Package/Case:
0603 (1608 Metric), Concave
Detailed Description:
PTC RESET FUSE 15V 100MA 0603
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 15V 100 mA Ih Surface Mount 0603 (1608 Metric), Concave
In Stock
4000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
OptiFuse
Series
R0603
Packaging
Tape & Reel (TR)
Part Status
Active
Type
Polymeric
Voltage - Max
15V
Current - Hold (Ih) (Max)
100 mA
Current - Trip (It)
250 mA
Current - Max
40 A
Time to Trip
100 ms
Resistance - Initial (Ri) (Min)
900 mOhms
Resistance - Post Trip (R1) (Max)
8 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric), Concave
Size / Dimension
0.063" L x 0.029" W (1.60mm x 0.73mm)
Height - Seated (Max)
-
Thickness (Max)
0.030" (0.75mm)
Lead Spacing
-
Approval Agency
cULus, TUV
Base Product Number
R0603
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8535.10.0040
Additional Resources
Other Names
2298-R0603-010-RTR
Standard Package
4,000
