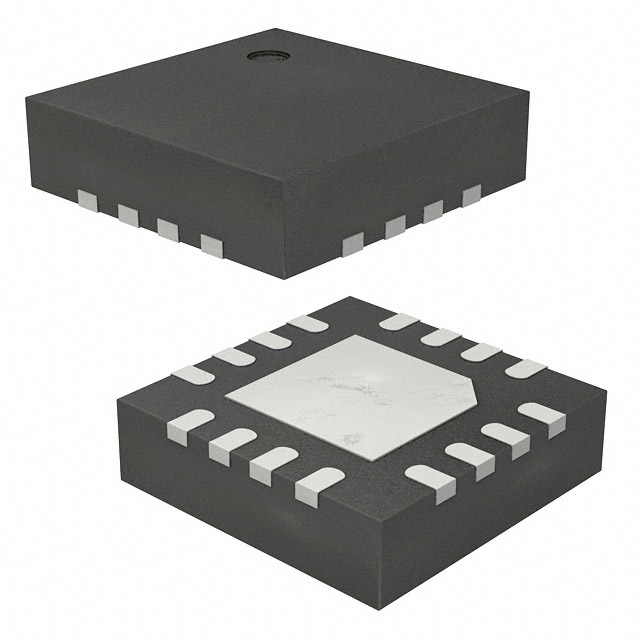

R2A20168NP#W5 Renesas Electronics Corporation
Favorite
Compare
Manufacturer:
Renesas Electronics Corporation
MFR Product Number:
R2A20168NP#W5
Product Number:
R2A20168NP-W5
MFR Standard Lead Time:
Package/Case:
16-WFQFN Exposed Pad
Detailed Description:
IC DAC 8BIT V-OUT 16QFN
Datasheet:
Descnt:
8 Bit Digital to Analog Converter 8 16-QFN (3x3)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Renesas Electronics Corporation
Series
-
Packaging
Tape & Reel (TR)
Part Status
Not For New Designs
DigiKey Programmable
Not Verified
Number of Bits
8
Number of D/A Converters
8
Settling Time
150µs
Output Type
Voltage - Buffered
Differential Output
No
Data Interface
SPI
Reference Type
External
Voltage - Supply, Analog
2.7V ~ 5.5V
Voltage - Supply, Digital
2.7V ~ 5.5V
INL/DNL (LSB)
±1 (Max), ±0.7 (Max)
Architecture
R-2R
Operating Temperature
-30°C ~ 85°C
Package / Case
16-WFQFN Exposed Pad
Supplier Device Package
16-QFN (3x3)
Mounting Type
Surface Mount
Base Product Number
R2A20168
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
3,000
-
