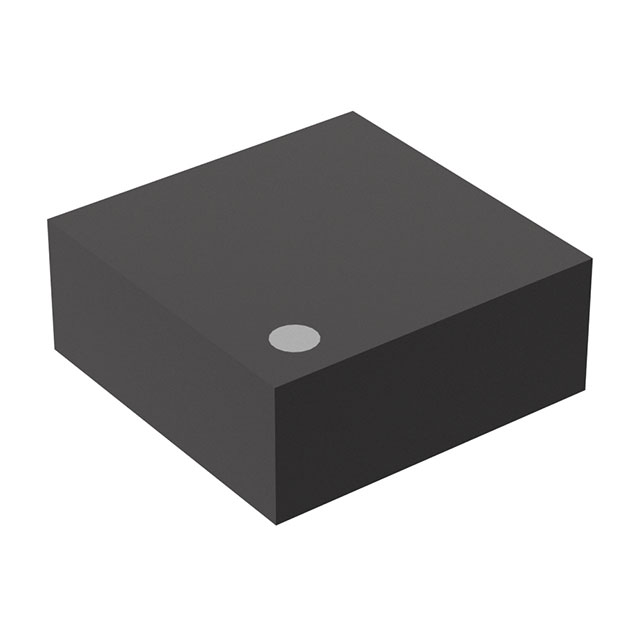

R5540K004D-TR Nisshinbo Micro Devices Inc.
Favorite
Compare
Manufacturer:
Nisshinbo Micro Devices Inc.
MFR Product Number:
R5540K004D-TR
Product Number:
R5540K004D-TR
MFR Standard Lead Time:
12 Weeks
Package/Case:
4-XFDFN
Detailed Description:
IC PWR SWITCH N-CH 1:1 DFN1010
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 450mA DFN(PL)1010-4F
In Stock
4837
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Nisshinbo Micro Devices Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
-
Voltage - Load
0.8V ~ 3.6V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
450mA
Rds On (Typ)
120mOhm
Input Type
Inverting
Features
-
Fault Protection
Over Current
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
DFN(PL)1010-4F
Package / Case
4-XFDFN
Base Product Number
R5540
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
10,000
