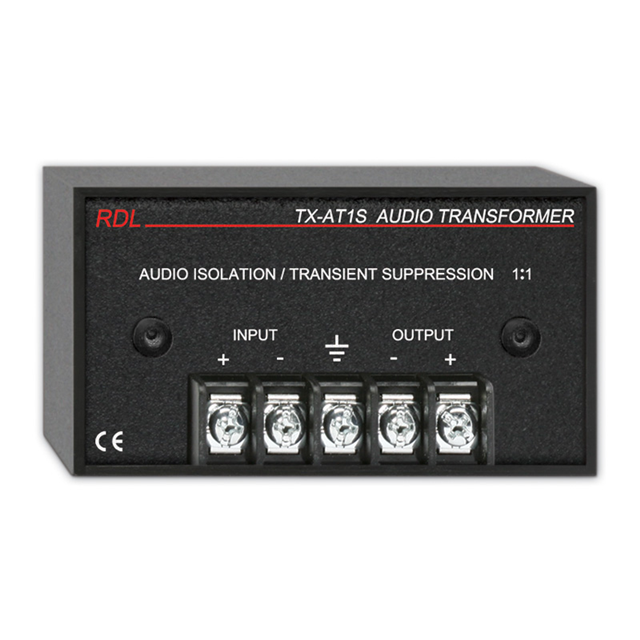

RDL TX-AT1S Radio Design Labs
Favorite
Compare
Manufacturer:
Radio Design Labs
MFR Product Number:
RDL TX-AT1S
Product Number:
RDL-TX-AT1S
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 600 CHAS MNT
Datasheet:
Descnt:
600 Impedance Primary Ohms 600 Impedance Secondary Ohms 1:1 Audio Transformer 20Hz ~ 20kHz Chassis Mount
In Stock
1
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Radio Design Labs
Series
TX™
Packaging
Retail Package
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
-
DC Resistance (DCR) - Secondary
-
Transformer Type
Impedance Matching
Frequency Range
20Hz ~ 20kHz
Frequency Response
±0.1dB
Voltage - Isolation
-
Insertion Loss
2dB Typ
Return Loss
-
Power Level
-
Operating Temperature
0°C ~ 55°C
Approval Agency
CE
Mounting Type
Chassis Mount
Size / Dimension
3.169" L x 1.752" W (80.50mm x 44.50mm)
Height - Seated (Max)
2.059" (52.30mm)
Termination Style
Screw Terminal
Weight
-
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
Vendor Undefined
-
Additional Resources
Other Names
3922-RDLTX-AT1S
Standard Package
1
