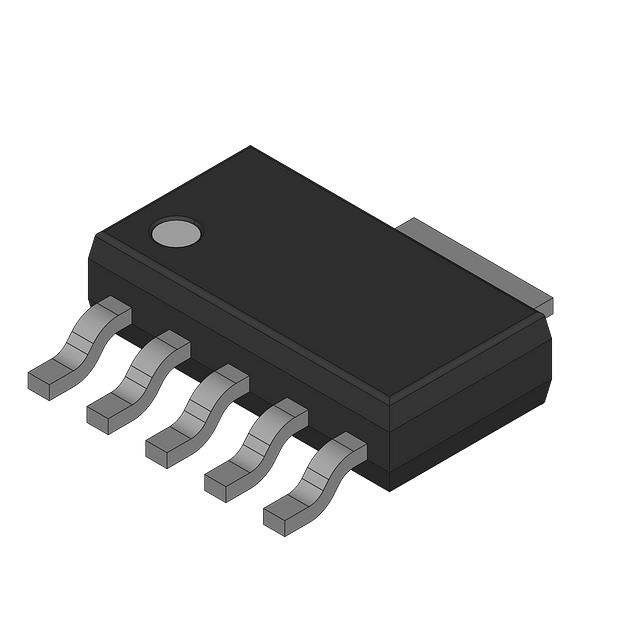

REG104GA-A/2K5 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
REG104GA-A/2K5
Product Number:
REG104GA-A-2K5
MFR Standard Lead Time:
Package/Case:
SOT-223-6
Detailed Description:
REG104 - 1A, LOW-NOISE, LOW DROP
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223-6
In Stock
349
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Bulk
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
15V
Voltage - Output (Min/Fixed)
1.295V
Voltage - Output (Max)
5.5V
Voltage Dropout (Max)
0.48V 1A
Current - Output
1A
Current - Quiescent (Iq)
0.7 mA
Current - Supply (Max)
1.8 mA
PSRR
65dB (120Hz)
Control Features
Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
SOT-223-6
Supplier Device Package
SOT-223-6
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
Vendor Undefined
REACH Status
REACH Unaffected
Additional Resources
Other Names
2156-REG104GA-A/2K5-296
Standard Package
34
