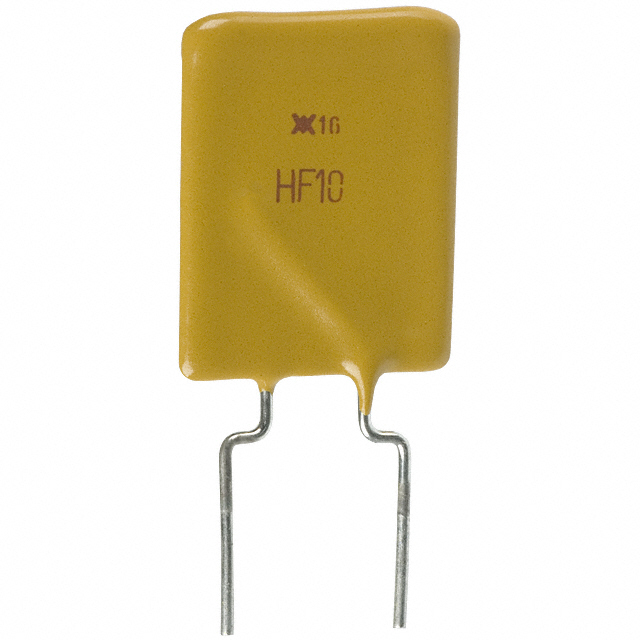

RHEF1000 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
RHEF1000
Product Number:
RHEF1000
MFR Standard Lead Time:
15 Weeks
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 16V 10A RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 16V 10 A Ih Through Hole Radial, Disc
In Stock
388
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, RHEF
Packaging
Bag
Part Status
Active
Type
Polymeric
Voltage - Max
16V
Current - Hold (Ih) (Max)
10 A
Current - Trip (It)
18.5 A
Current - Max
100 A
Time to Trip
9 s
Resistance - Initial (Ri) (Min)
6.2 mOhms
Resistance - Post Trip (R1) (Max)
15 mOhms
Operating Temperature
-40°C ~ 125°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.689" L x 0.118" W (17.50mm x 3.00mm)
Height - Seated (Max)
1.043" (26.50mm)
Thickness (Max)
-
Lead Spacing
0.400" (10.15mm)
Approval Agency
CSA, TUV, UL
-
Documents & Media
Datasheets
RHEF1000 Spec
PolySwitch, Radial-leaded Catalog
RHEF Series Datasheet
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
HTML Datasheet
PolySwitch, Radial-leaded Catalog
RHEF1000 Spec
RHEF Series Datasheet
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
250
