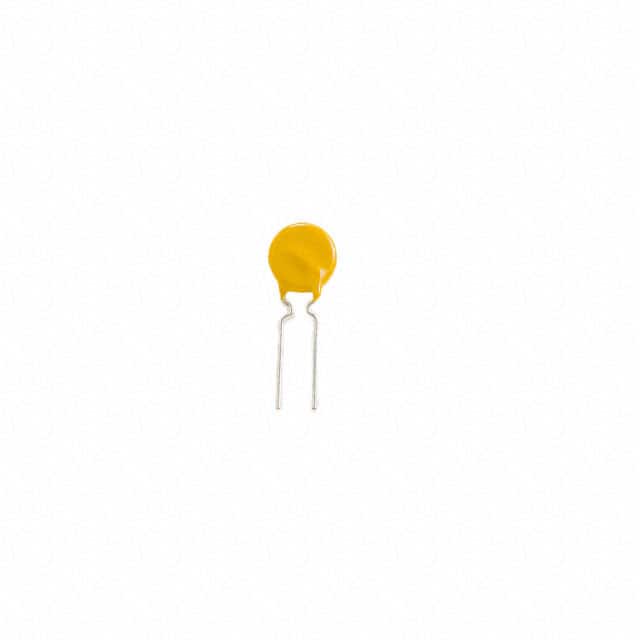

RS120-010 OptiFuse
Favorite
Compare
Manufacturer:
OptiFuse
MFR Product Number:
RS120-010
Product Number:
RS120-010
MFR Standard Lead Time:
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 120V 100MA RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 120V (135V Int) 100 mA Ih Through Hole Radial, Disc
In Stock
29
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
OptiFuse
Series
RS120
Packaging
Bulk
Part Status
Active
Type
Polymeric
Voltage - Max
120V (135V Int)
Current - Hold (Ih) (Max)
100 mA
Current - Trip (It)
200 mA
Current - Max
2 A
Time to Trip
10 s
Resistance - Initial (Ri) (Min)
3 Ohms
Resistance - Post Trip (R1) (Max)
7.5 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.311" Dia x 0.150" T (7.90mm x 3.80mm)
Height - Seated (Max)
0.512" (13.00mm)
Thickness (Max)
-
Lead Spacing
0.201" (5.10mm)
Approval Agency
cUL, TUV, UL
Base Product Number
RS120
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8535.10.0040
Additional Resources
Other Names
2298-RS120-010
Standard Package
1
