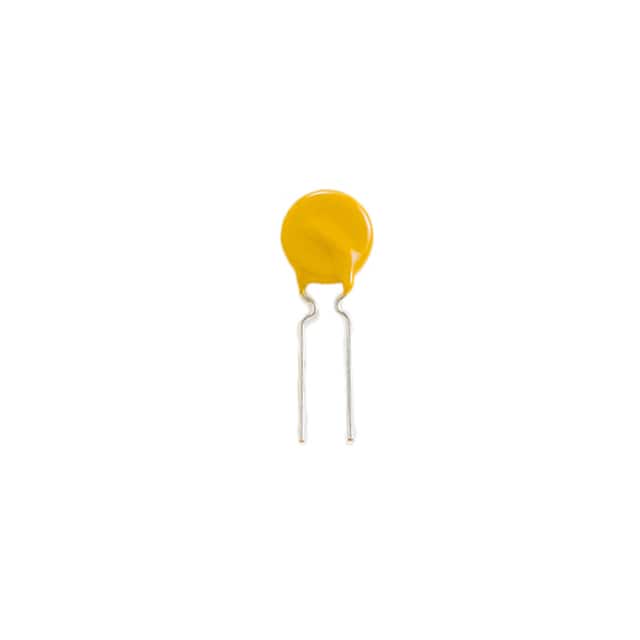

RS120-025 OptiFuse
Favorite
Compare
Manufacturer:
OptiFuse
MFR Product Number:
RS120-025
Product Number:
RS120-025
MFR Standard Lead Time:
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 120V 250MA RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 120V (135V Int) 250 mA Ih Through Hole Radial, Disc
In Stock
913
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
OptiFuse
Series
RS120
Packaging
Bulk
Part Status
Active
Type
Polymeric
Voltage - Max
120V (135V Int)
Current - Hold (Ih) (Max)
250 mA
Current - Trip (It)
500 mA
Current - Max
3 A
Time to Trip
7.5 s
Resistance - Initial (Ri) (Min)
1.25 Ohms
Resistance - Post Trip (R1) (Max)
3 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.311" Dia x 0.150" T (7.90mm x 3.80mm)
Height - Seated (Max)
0.512" (13.00mm)
Thickness (Max)
-
Lead Spacing
0.201" (5.10mm)
Approval Agency
cUL, TUV, UL
Base Product Number
RS120
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8535.10.0040
-
Additional Resources
Other Names
2298-RS120-025
Standard Package
1
