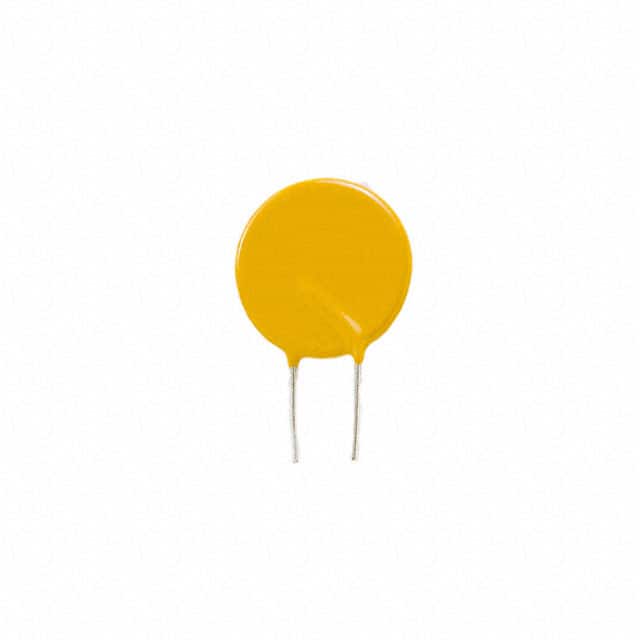

RS120-375 OptiFuse
Favorite
Compare
Manufacturer:
OptiFuse
MFR Product Number:
RS120-375
Product Number:
RS120-375
MFR Standard Lead Time:
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 120V 3.75A RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 120V (135V Int) 3.75 A Ih Through Hole Radial, Disc
In Stock
152
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
OptiFuse
Series
RS120
Packaging
Bulk
Part Status
Active
Type
Polymeric
Voltage - Max
120V (135V Int)
Current - Hold (Ih) (Max)
3.75 A
Current - Trip (It)
7.5 A
Current - Max
20 A
Time to Trip
24 s
Resistance - Initial (Ri) (Min)
30 mOhms
Resistance - Post Trip (R1) (Max)
80 mOhms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
1.004" Dia x 0.161" T (25.50mm x 4.10mm)
Height - Seated (Max)
1.339" (34.00mm)
Thickness (Max)
-
Lead Spacing
0.402" (10.20mm)
Approval Agency
cUL, TUV, UL
Base Product Number
RS120
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8535.10.0040
-
Additional Resources
Other Names
2298-RS120-375
Standard Package
1
