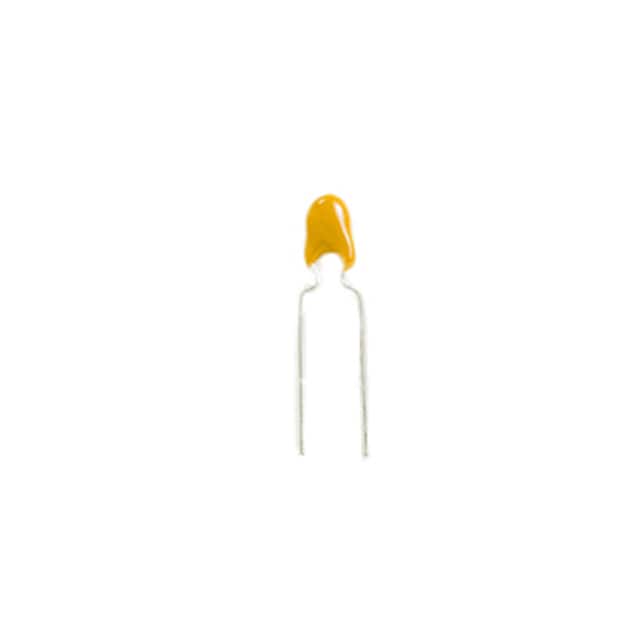

RS90-040 OptiFuse
Favorite
Compare
Manufacturer:
OptiFuse
MFR Product Number:
RS90-040
Product Number:
RS90-040
MFR Standard Lead Time:
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 72V 400MA RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 72V (90V Int) 400 mA Ih Through Hole Radial, Disc
In Stock
499
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
OptiFuse
Series
RS90
Packaging
Bulk
Part Status
Active
Type
Polymeric
Voltage - Max
72V (90V Int)
Current - Hold (Ih) (Max)
400 mA
Current - Trip (It)
800 mA
Current - Max
40 A
Time to Trip
3.8 s
Resistance - Initial (Ri) (Min)
550 mOhms
Resistance - Post Trip (R1) (Max)
1.29 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.299" Dia x 0.122" T (7.60mm x 3.10mm)
Height - Seated (Max)
0.531" (13.50mm)
Thickness (Max)
-
Lead Spacing
0.201" (5.10mm)
Approval Agency
cUL, TUV, UL
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8535.10.0040
Additional Resources
Other Names
2298-RS90-040
Standard Package
1
